EncDotNet.S100.Datasets.S201

Library for reading and portraying IHO/IALA S-201 (Aids to Navigation Information) datasets.

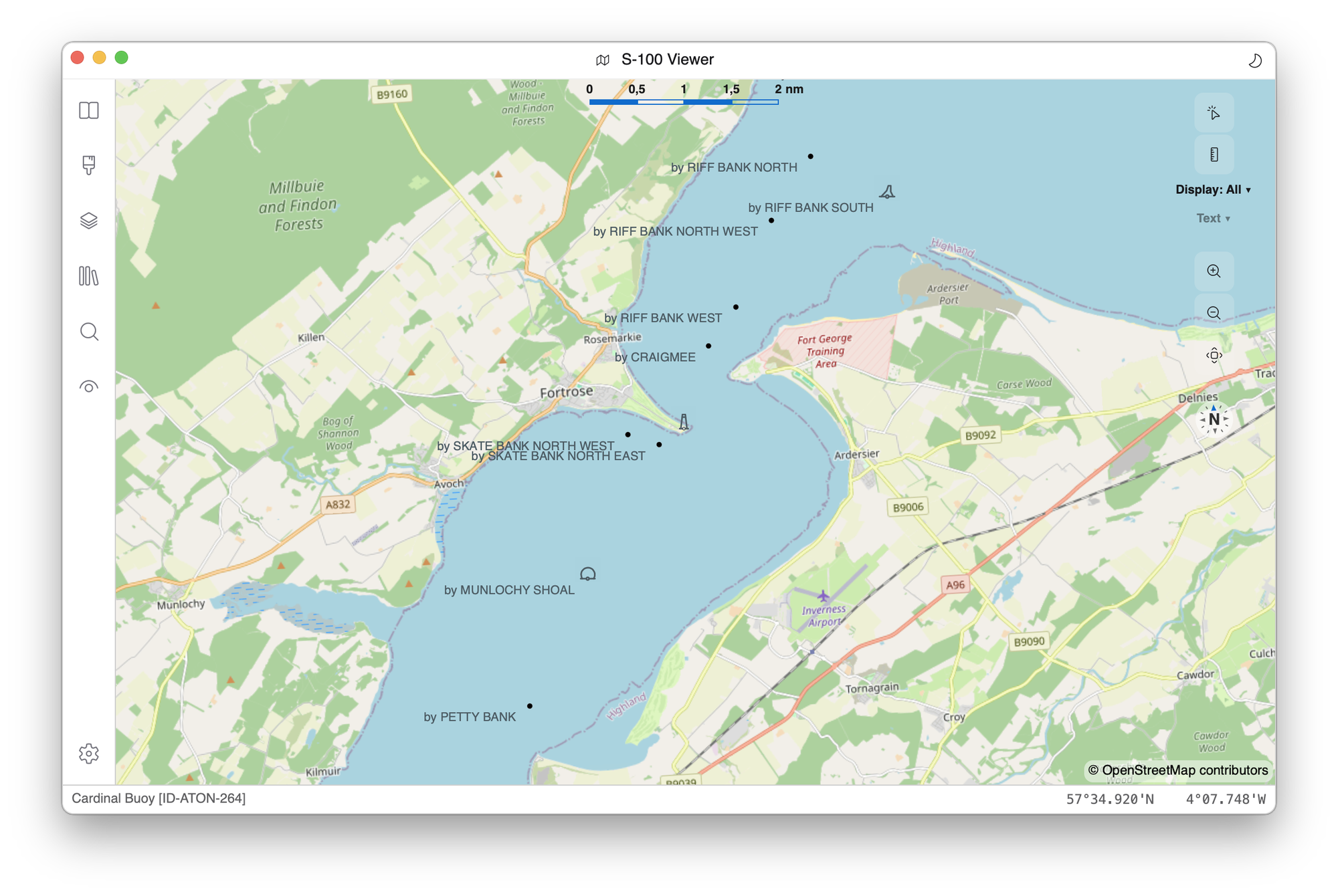

S-201 dataset rendered in the EncDotNet.S100 viewer

What S-201 is — and how it differs from S-125

S-201 is the IALA-led S-100 product specification for authority-to-authority Aids to Navigation data exchange. It carries the rich, authoritative AtoN model used by IALA member authorities — operational and technical attributes, equipment lifecycle, AIS-AtoN routing, and so on. It is not intended for ECDIS display.

EncDotNet.S100.Datasets.S125 covers overlapping physical objects (lights, buoys, beacons, AIS aids) but is the leaner ECDIS-facing AtoN feature set defined by IHO. The two specs share a problem domain but are separate standards with separate Feature Catalogues, separate XSDs, separate Portrayal Catalogues, and separate intended audiences.

Use case Spec
ECDIS display of AtoN S-125
Authority-to-authority AtoN exchange (operational/technical detail) S-201

This library treats S-125 and S-201 as fully independent products. If both an S-125 and an S-201 dataset cover the same area the viewer renders them as independent layers; no merging or deduplication is attempted.

Features

  • Parse S-201 GML datasets (S-100 Part 10b encoding using the S-100 GML 5.0 profile; legacy 1.0 namespaces are also tolerated)
  • Namespace-driven feature recognition — no hard-coded allow-list of the 62 concrete S-201 feature types
  • Capture xlink cross-references and split them into:
    • information references (target is an information type — e.g. AtoNStatus → AtonStatusInformation, Positioning → PositioningInformation)
    • feature references (target is another feature — e.g. theParentFeature / theSubordinateFeature from the Structure/Equipment aggregation, peer from Aggregations / Associations)
  • Project to the S-100 Part 9 FeatureXML neutral form (Dataset/Features/* plus Dataset/InformationTypes/*) consumed by the S-201 portrayal catalogue
  • XSLT-based portrayal via the bundled S-201 Portrayal Catalogue (top-level template main_PaperChart.xsl)

Overview

Key types:

  • S201Dataset — root model containing parsed features, information types, and dataset identification. Provides ResolveReferencedFeatures / ResolveReferencedInformationTypes helpers for walking xlinks by role name. ReadMetadata() (plus static ReadMetadata(path) / ReadMetadata(stream)) is the phased-loading "peek" path (issue #460): it returns a DatasetMetadata with the declared spec and the raw WGS-84 extent folded from feature geometry (null when the dataset carries only geometry-less container features), skipping the XSLT portrayal pipeline.
  • S201Feature — a geographic feature with type code, geometry, simple/complex attributes, information references, and feature references. Implements IS100Feature.
  • S201InformationType — an information type instance (e.g. AtonStatusInformation, PositioningInformation, AtoNFixingMethod, SpatialQuality). Implements IS100InformationType.
  • S201InformationReference — a feature → information-type binding captured from an xlink:href attribute.
  • S201FeatureReference — a feature → feature binding (e.g. equipment ↔ host structure) captured from an xlink:href attribute.
  • S201ComplexAttribute — a complex attribute group with sub-attribute values. Implements IS100ComplexAttribute.
  • S201FeatureXmlSource — IFeatureXmlSource adapter that projects an S201Dataset into the synthesised Dataset/Features/* shape that the S-201 XSLT rules match against.
  • S201PortrayalCatalogue — IVectorPortrayalCatalogue implementation that loads XSLT rules, symbols, line styles, area fills, and color palettes from the bundled catalogue.

Strongly-typed data model

S201Dataset is a faithful but loosely-typed feature bag — attributes arrive as ImmutableDictionary<string, string>, xlinks are unresolved strings, and equipment ↔ host-structure subordination must be walked by hand. The EncDotNet.S100.Datasets.S201.DataModel namespace adds a strongly-typed projection on top of that bag:

  • S201AtonInventory — root entity. Exposes typed views (Structures, Equipment, ElectronicAtoNs), plus the resolved Aggregations, Associations, StatusInformation, PositioningInformation, FixingMethods, and SpatialQualities collections.
  • S201AtonObject (abstract base) — the common AtoN attributes shared by every concrete leaf: identifier, lifecycle dates (InstallationDate, FixedDateRange, PeriodicDateRange), inspection metadata, source provenance, AtoN status timeline, and geometry as an enum (S201GeometryKind) plus a flat ImmutableArray<GeoPosition>.
  • S201StructureObject — concrete subclass for beacons, buoys, landmarks, lighthouses, light vessels, offshore platforms, etc. Adds AtoNNumber, AidAvailabilityCategory, Condition, ContactAddress, the resolved MountedEquipment, and typed PositioningInformation / FixingMethods bindings.
  • S201Equipment — concrete subclass for daymarks, fog signals, radar reflectors, racons, power sources, etc. Exposes the back-resolved HostStructure (the headline subordination value-add).
  • S201Light — Equipment subclass collapsing the four FC light leaves (LightSectored, LightAllAround, LightAirObstruction, LightFogDetector) into a single class discriminated by LightKind. Adds Height, Status codes, VerticalDatum, VerticalLength, EffectiveIntensity, PeakIntensity.
  • S201ElectronicAtoN — collapses the three AIS-AtoN FC leaves (VirtualAISAidToNavigation, PhysicalAISAidToNavigation, SyntheticAISAidToNavigation) into one class discriminated by AisAtonKind. Carries MmsiCode, AIS Status, and (for Physical / Synthetic variants) the resolved HostStructure.
  • S201GenericAtonObject — fallback for AtoN features the typed model has no dedicated subclass for (e.g. NavigationLine, DataCoverage, DangerousFeature). Carries the common S201AtonObject attributes plus geometry and round-trips everything else through ExtraAttributes.

The projection is read-only and never throws except when the source dataset has neither features nor information types. Every other failure — unresolved xlinks, attribute parse errors, unexpected target types — surfaces as a ProjectionDiagnostic entry on the out parameter.

How this differs from the S-125 typed model

Both S-201 and S-125 carry AtoN data, but they are independent specifications with different audiences (operational vs ECDIS display). The S-201 typed model exposes:

  1. Equipment ↔ host-structure subordination as a typed bidirectional reference (Equipment.HostStructure, Structure.MountedEquipment).
  2. AtoN lifecycle (InstallationDate, FixedDateRange, PeriodicDateRange) on every AtoN.
  3. AtoN status timeline via the AtoNStatus info-binding, including the ChangeTypes codelist.
  4. Positioning / fixing-method bindings on structures.
  5. Remote monitoring system metadata on equipment.

The two typed models share only the abstractions in EncDotNet.S100.Core.DataModel (GeoPosition, ProjectionDiagnostic, ProjectionContext, XlinkResolver, AttributeParser, ExtraAttributes). They do not share any spec-level types. If your application consumes both, project each dataset to its own typed model and reconcile at the call site.

Quick start (typed model)

using EncDotNet.S100.Datasets.S201;
using EncDotNet.S100.Datasets.S201.DataModel;

var dataset = S201Dataset.Open("aton.gml");
var inventory = S201AtonInventory.From(dataset, out var diagnostics);

// Walk the inventory by host structure.
foreach (var structure in inventory.Structures)
{
    Console.WriteLine($"{structure.FeatureClass} {structure.AtoNNumber}");
    foreach (var equipment in structure.MountedEquipment)
    {
        var kind = equipment is S201Light light
            ? $"Light/{light.Kind}"
            : equipment.FeatureClass;
        Console.WriteLine($"  → {kind} {equipment.Id}");
    }
}

// Filter AIS AtoNs by kind.
foreach (var ais in inventory.ElectronicAtoNs.Where(a => a.Kind == AisAtonKind.Virtual))
    Console.WriteLine($"Virtual AIS {ais.Id} MMSI={ais.MmsiCode}");

// Diagnostics are non-fatal.
foreach (var d in diagnostics)
    Console.Error.WriteLine($"{d.Severity} {d.Code}: {d.Message}");

Notes

  • S-201 Edition 2.0.0 application schema namespace is http://www.iho.int/S-201/gml/cs0/1.0. Note the legacy-style hyphen and /gml/cs0/1.0 suffix; this is intentional and distinct from the cleaner S125/1.0 form.
  • Geometry uses the S-100 GML 5.0 profile namespace http://www.iho.int/s100gml/5.0. The reader is also tolerant of the older S-100 GML 1.0 profile namespaces still seen in some pre-publication encoders.
  • Coordinate ordering in <gml:pos> / <gml:posList> follows the S-100 Part 10b §6.2 convention of lat lon for EPSG:4326.
  • The bundled portrayal catalogue is taken from the IALA-IGO upstream repository at commit 7ddfe8145812141fb8ca413107254f42febd893e; see EncDotNet.S100.Specifications/content/S201/README.md for full provenance and the upstream → bundled rename mapping. The catalogue ships a single Day-only color profile.
  • Renderers must tolerate geometry-less features — abstract supertypes such as AidsToNavigation, StructureObject, and Equipment, plus aggregation containers like AtonAggregation and AtonAssociation, may carry no geometry.
  • Time validity (fixedDateRange, periodicDateRange) is interpreted as UTC; do not coerce to local time at the source.

License

The bundled S-201 specification assets in EncDotNet.S100.Specifications are © IALA and used in accordance with their open-publication terms; see https://github.com/IALA-IGO/S-201_AtoN-Information.
