Next-generation marine data, on one map.

SoundCharts opens IHO S-100 charts and the layers that come with them, including depths, tides, currents, warnings and sea ice. It draws them together, aligned in time, on your desktop, and checks your routes against them. Under the hood is an open .NET SDK that you can use too.

v0.29.1 · All platforms · MIT licensed · Not for navigation

Want the newest features early? Try a nightly build. Nightlies come straight from the latest code, so expect the odd rough edge.

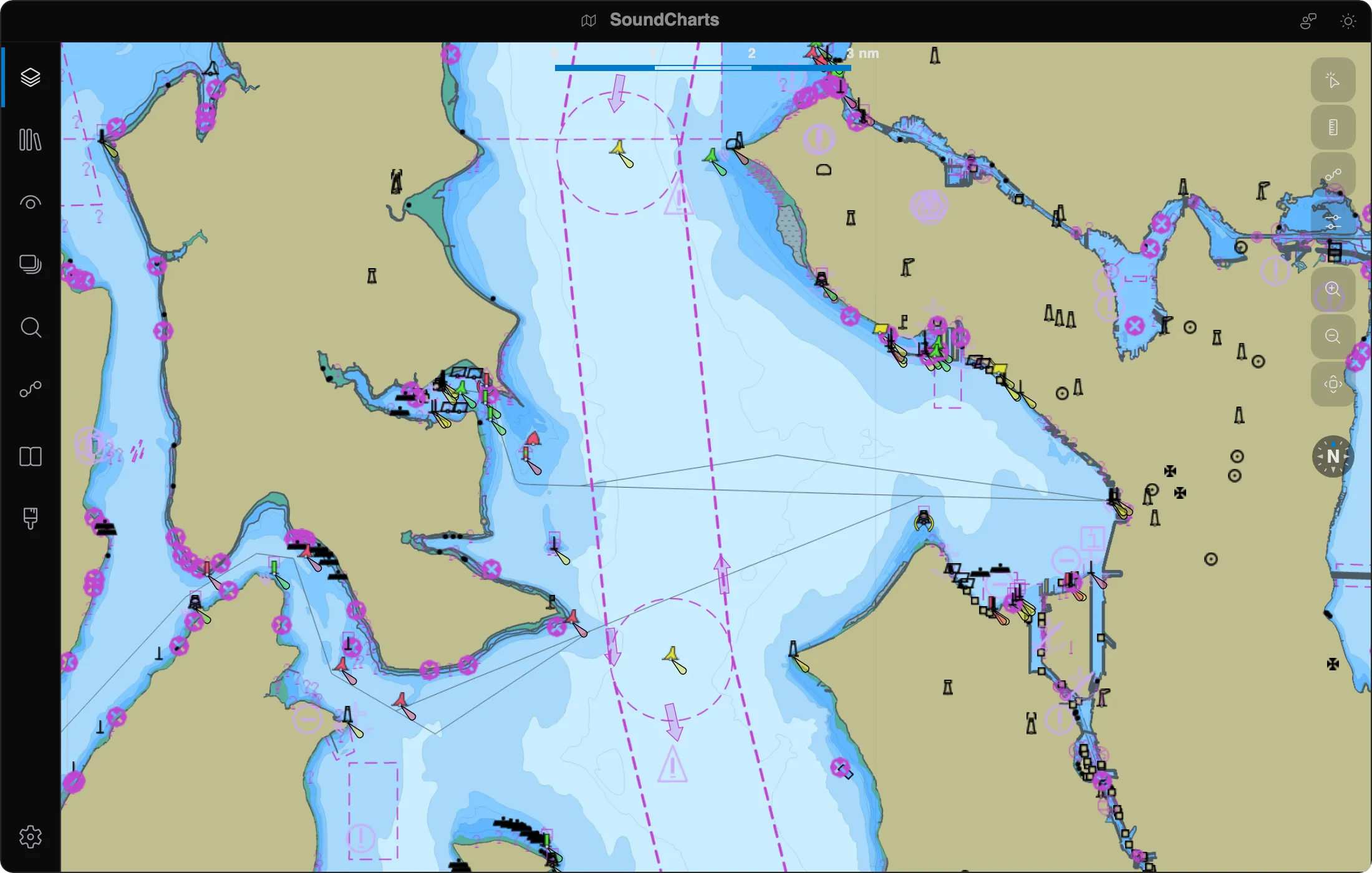

H1SoundCharts showing an electronic chart with depth shading and current arrows layered over Elliott Bay, Seattle
Beyond the chart

One map, many layers of the sea.

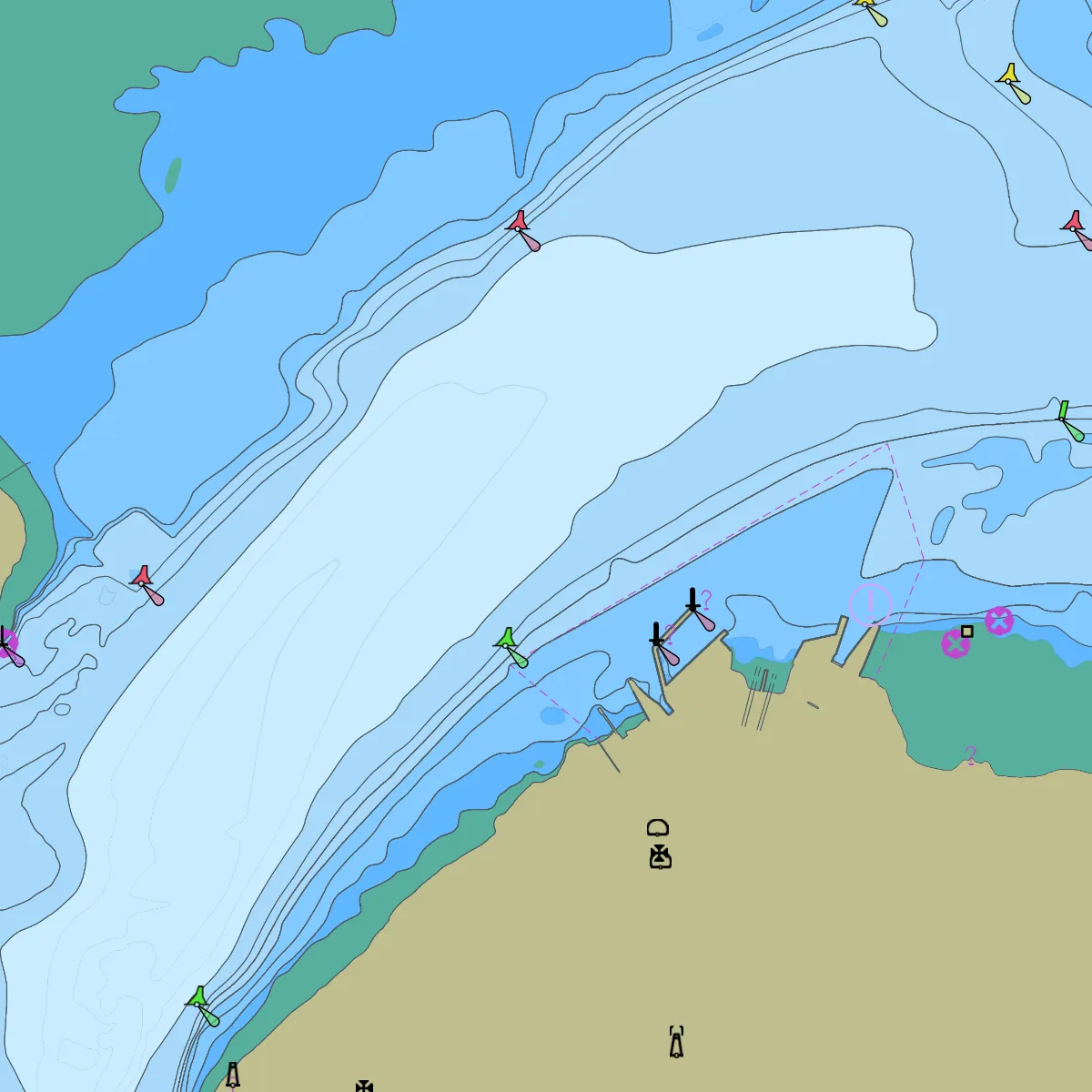

S-100 is the IHO's framework for the next generation of marine data. A chart is the base layer. Depth surfaces, water levels, currents, warnings, ice, routes and harbour data each come as their own product, and SoundCharts reads and draws more than fifteen of them, along with today's S-57 charts.

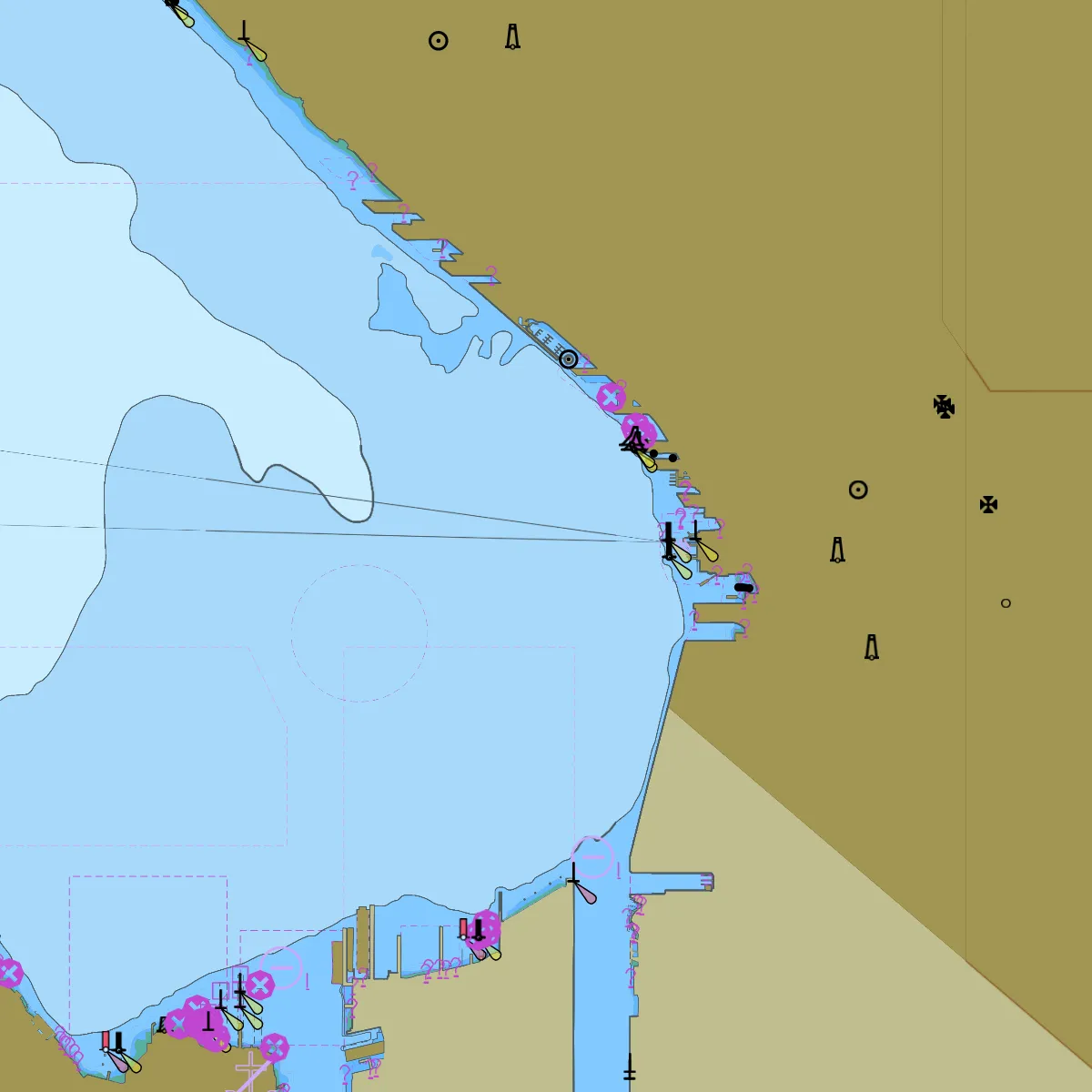

P02S-57 today's charts, translated in SoundCharts
S-57
Today's charts, translated

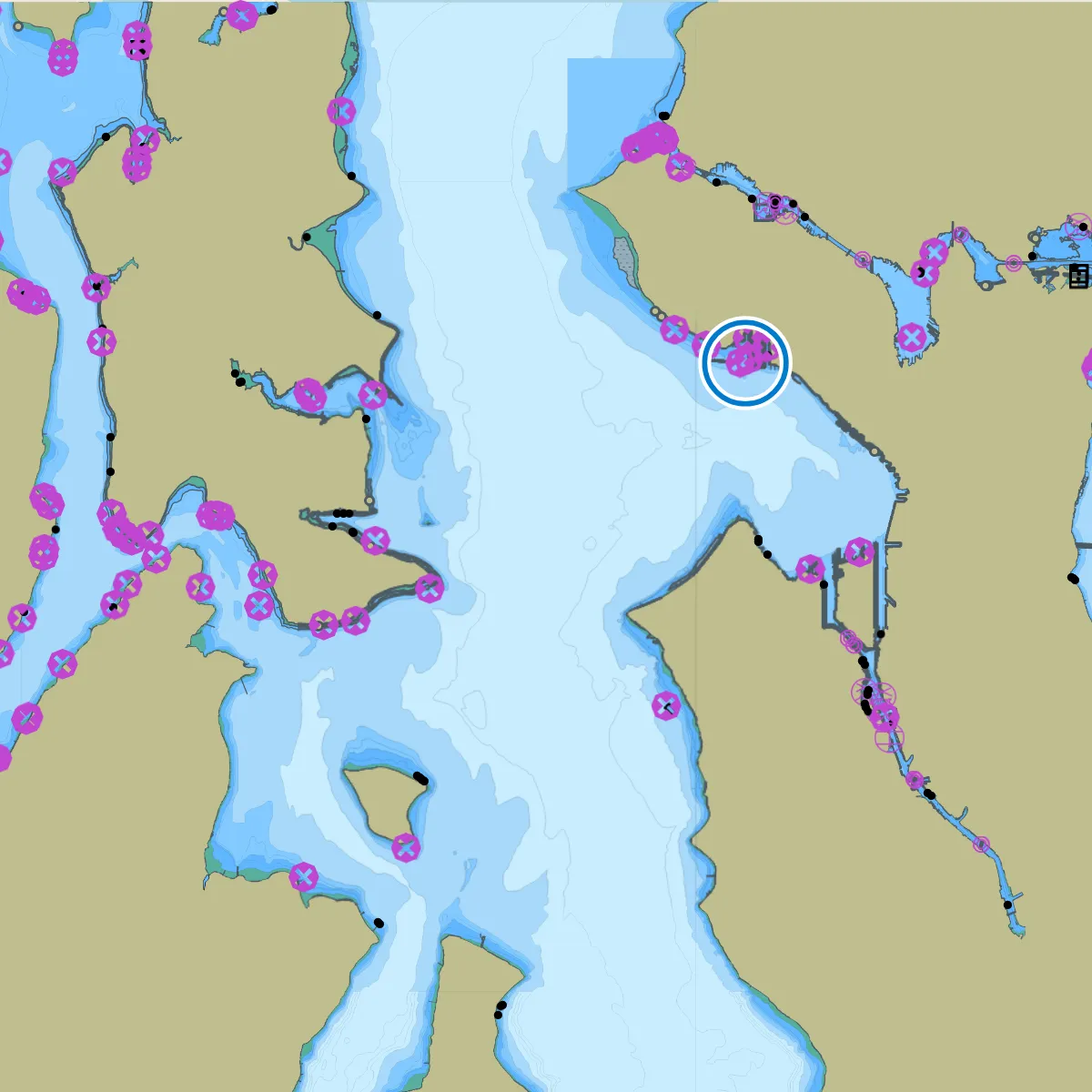

P03S-102 bathymetry in SoundCharts
S-102
Bathymetry

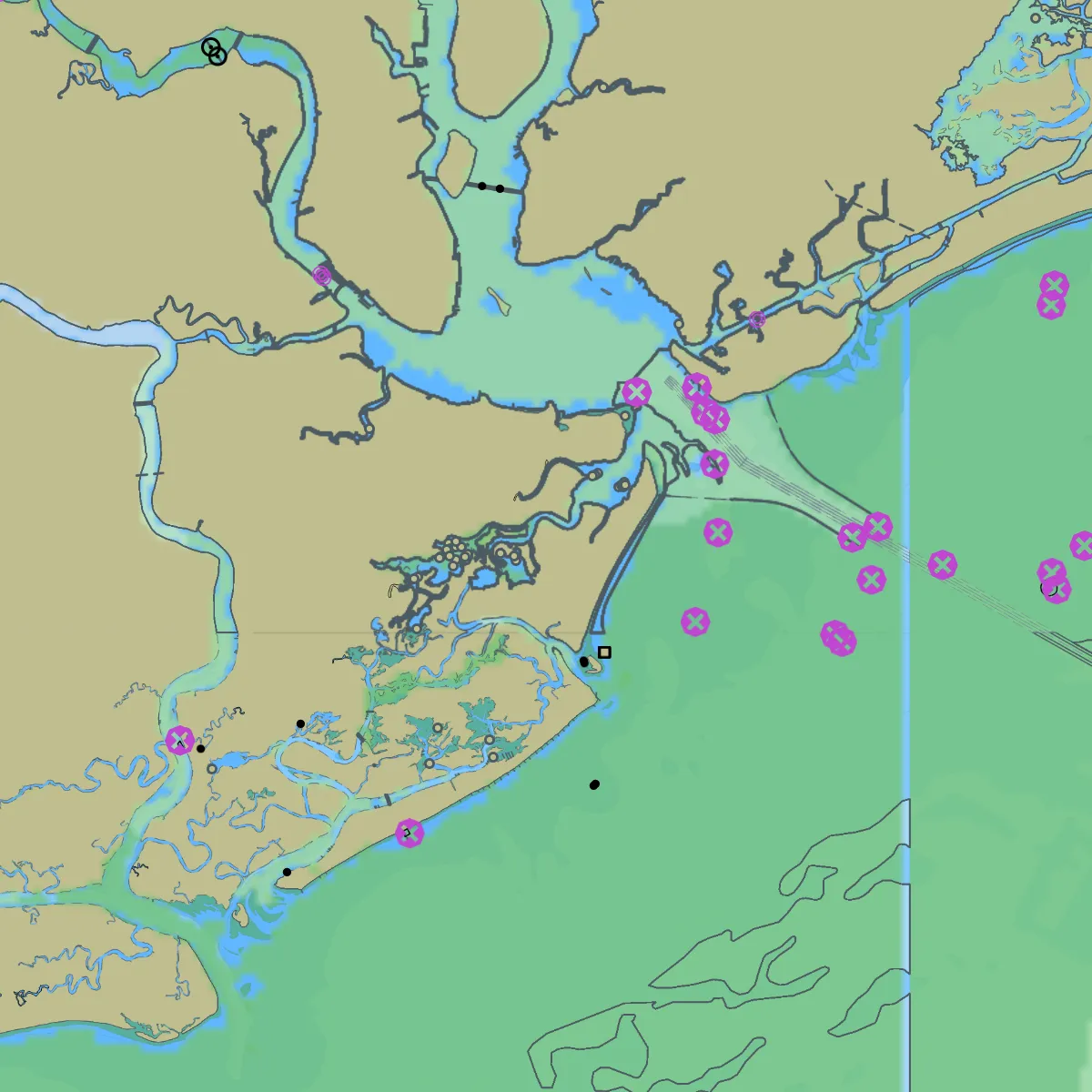

P04S-104 water levels in SoundCharts
S-104
Water levels

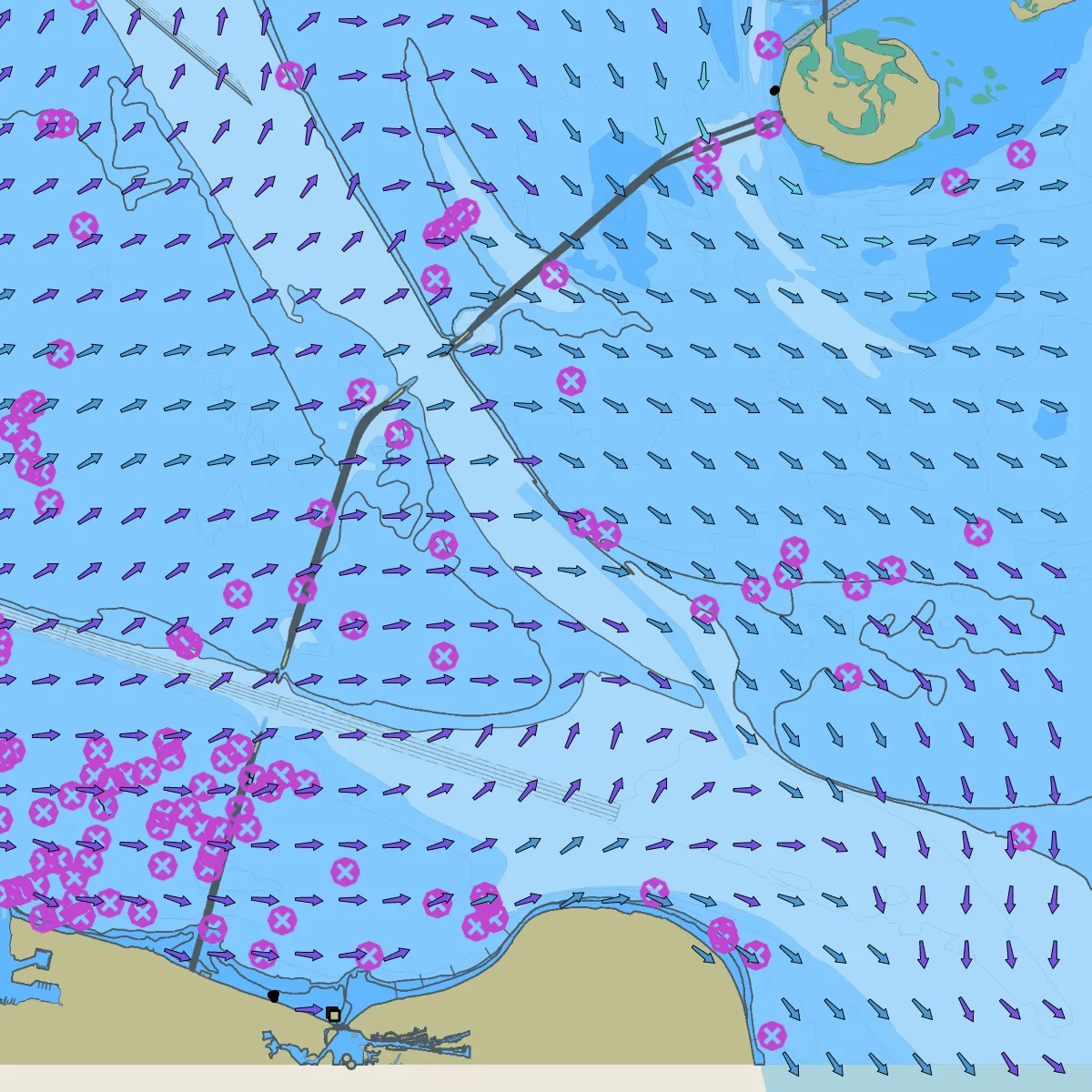

P05S-111 surface currents in SoundCharts
S-111
Surface currents

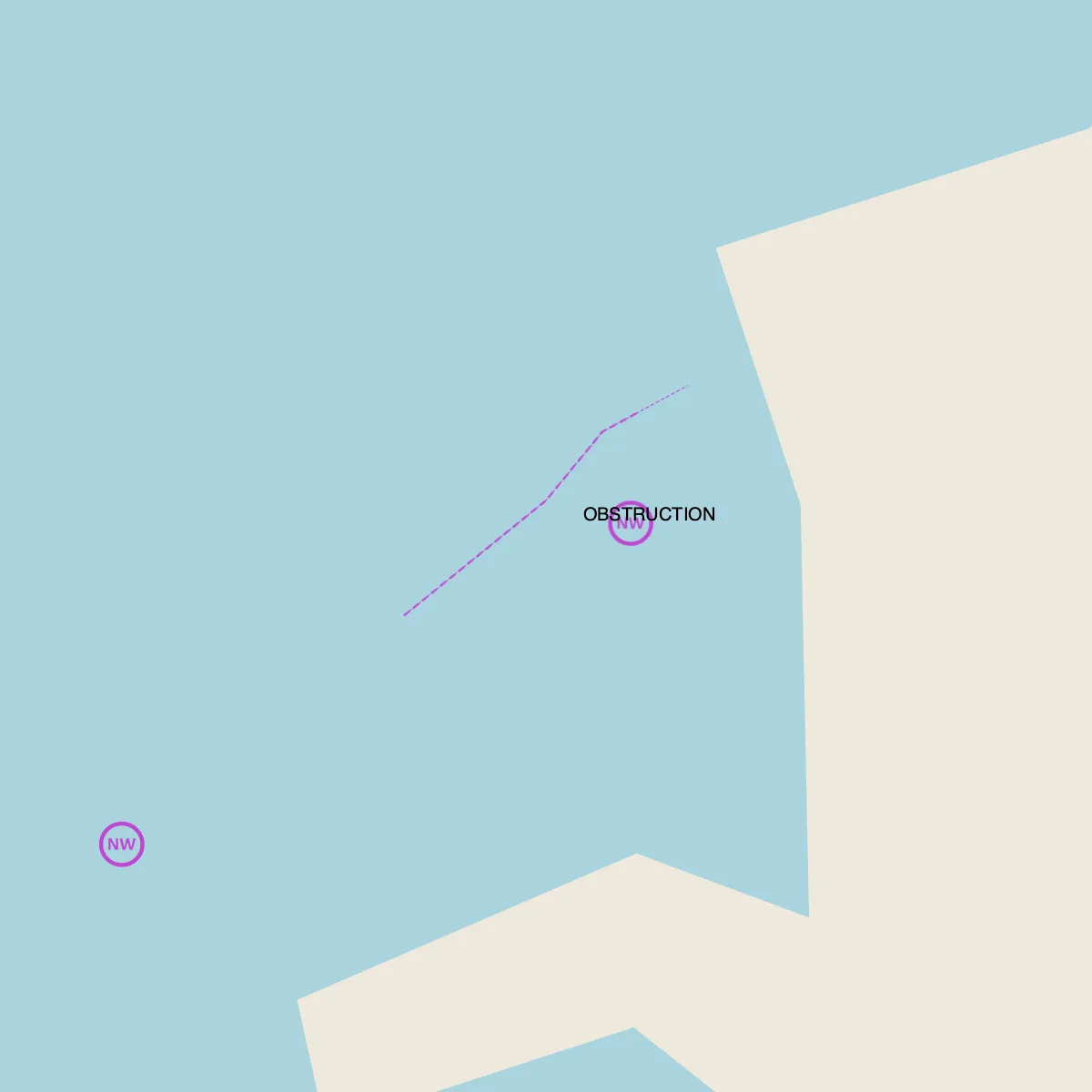

P06S-124 navigational warnings in SoundCharts
S-124
Navigational warnings

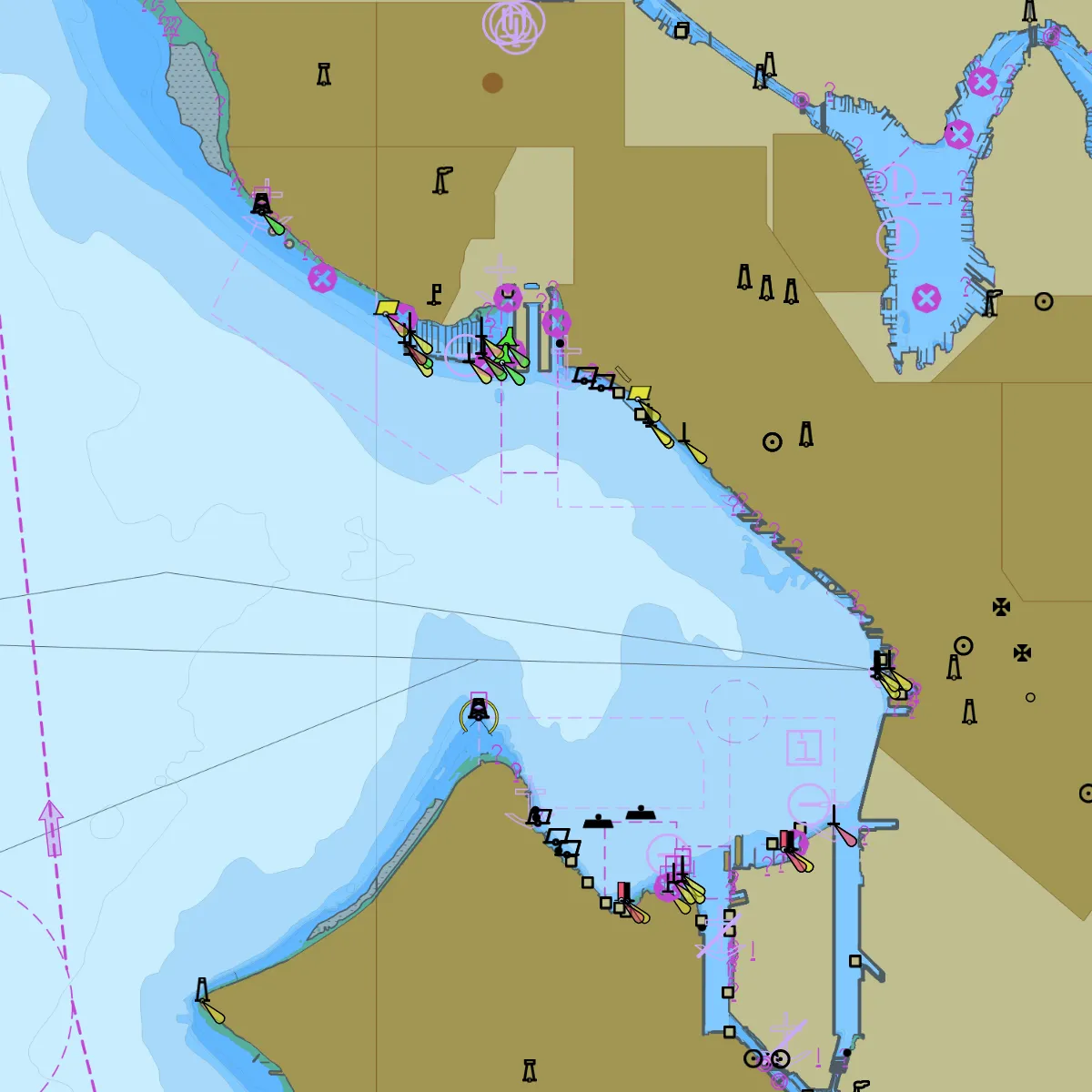

P07S-125 aids to navigation in SoundCharts
S-125
Aids to navigation

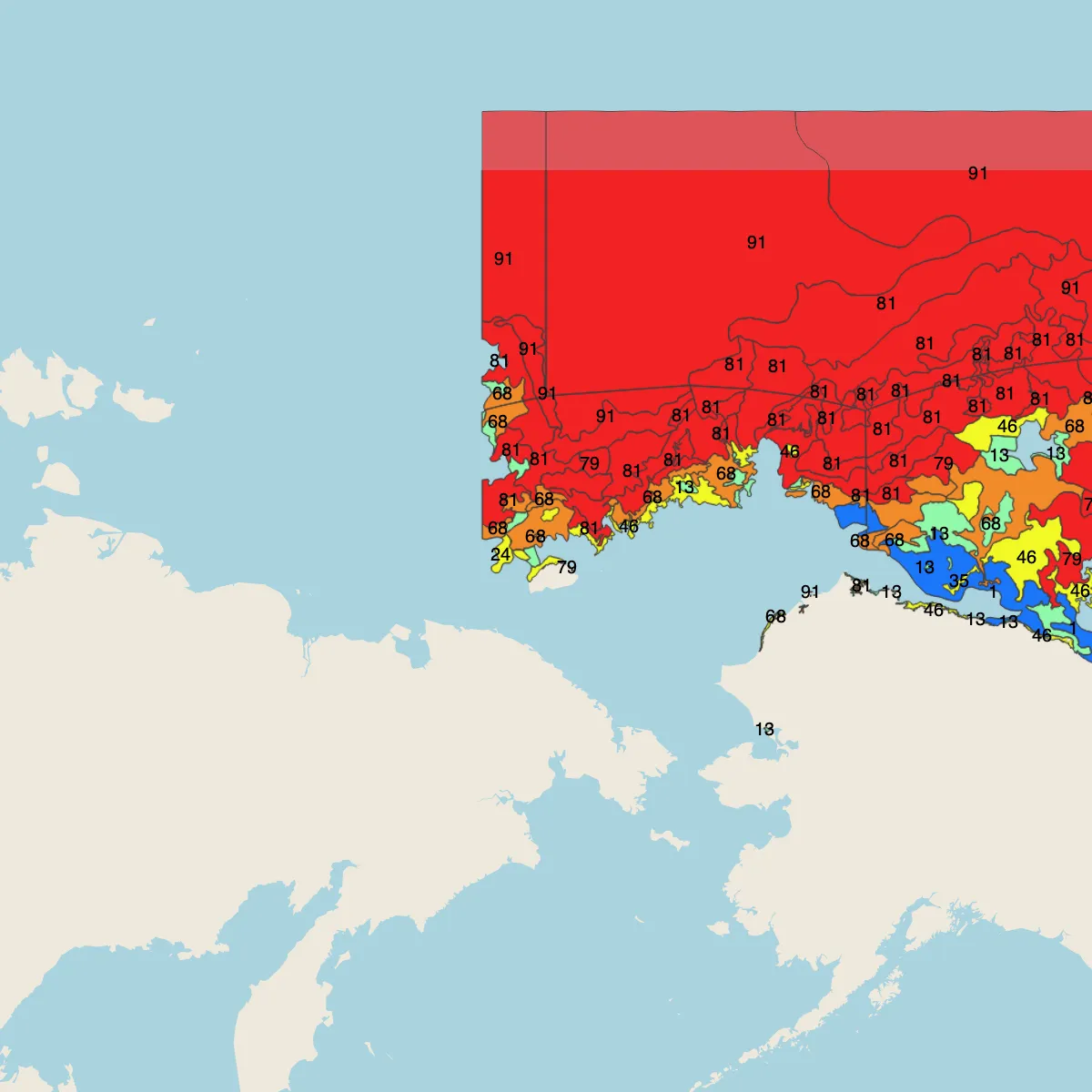

P08S-411 sea ice in SoundCharts
S-411
Sea ice

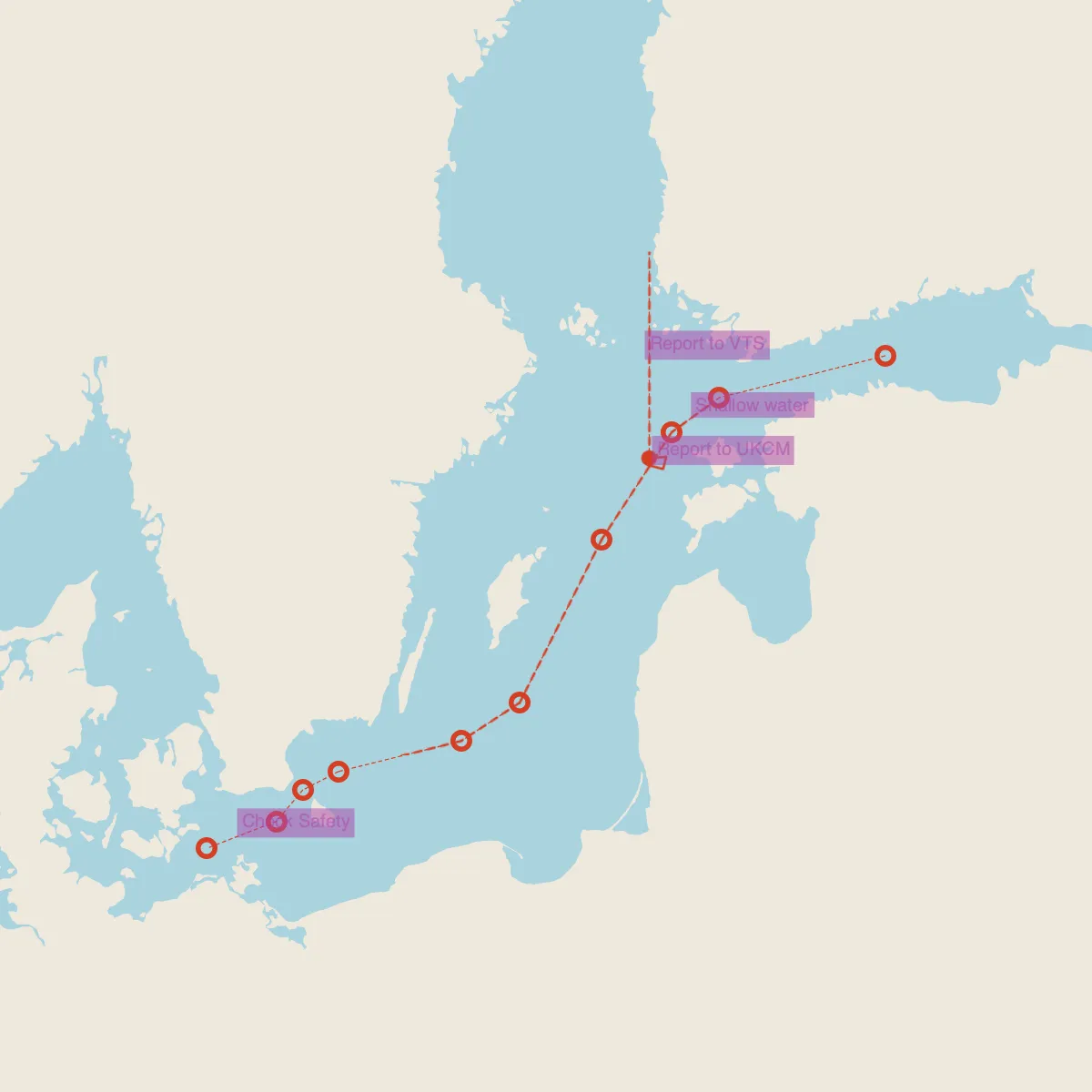

P09S-421 route plans in SoundCharts
S-421
Route plans

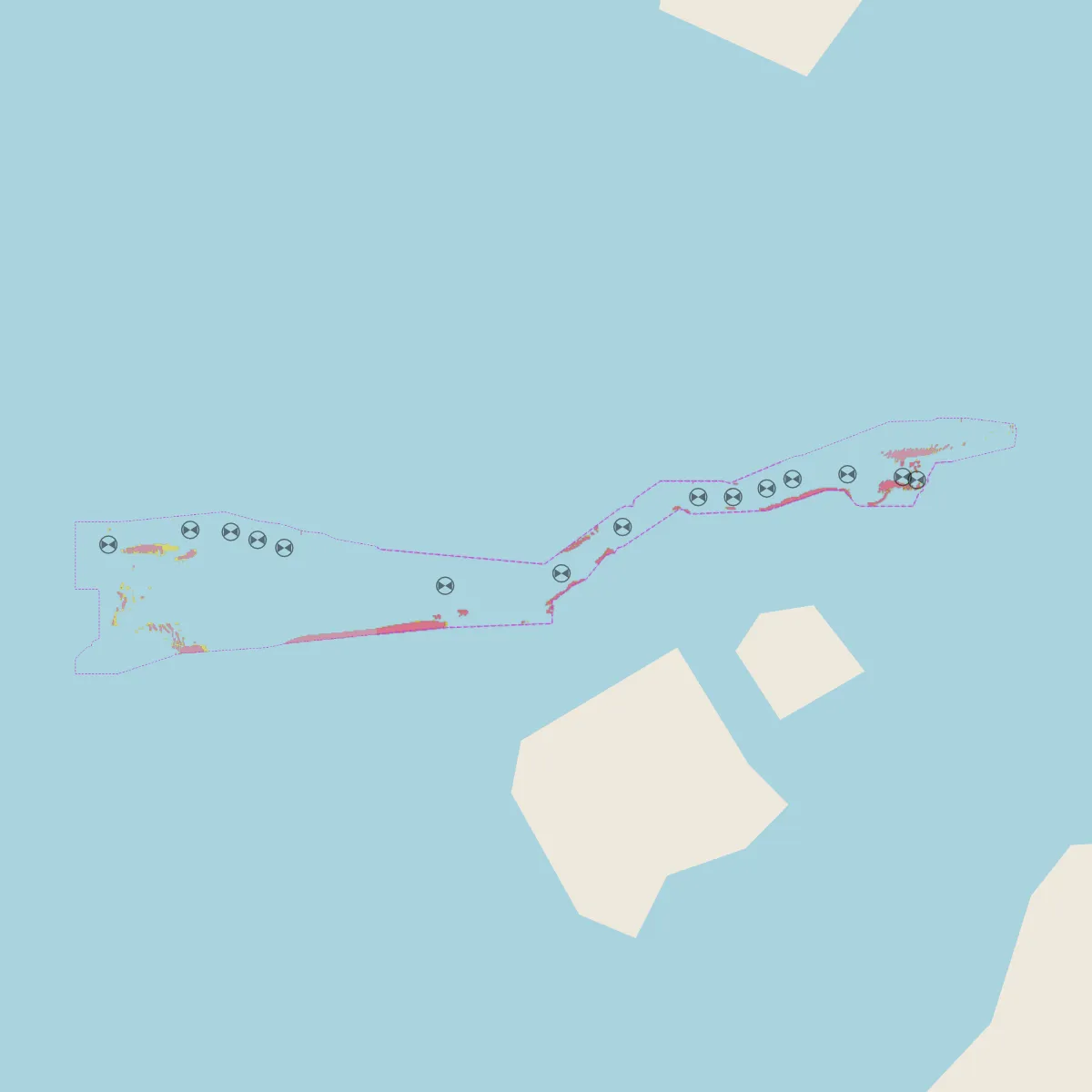

P10S-129 under-keel clearance in SoundCharts
S-129
Under-keel clearance

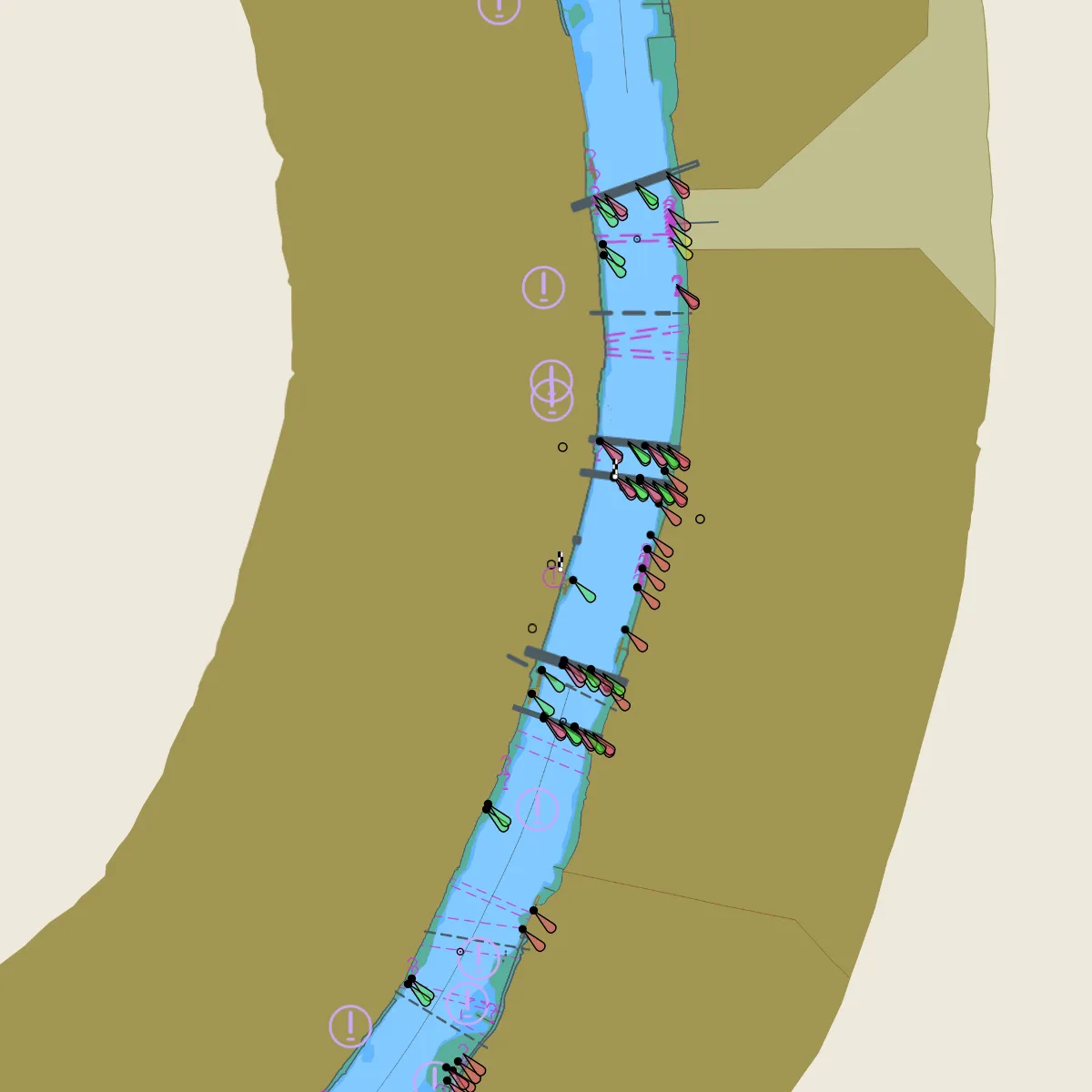

P11S-401 inland waterways in SoundCharts
S-401
Inland waterways

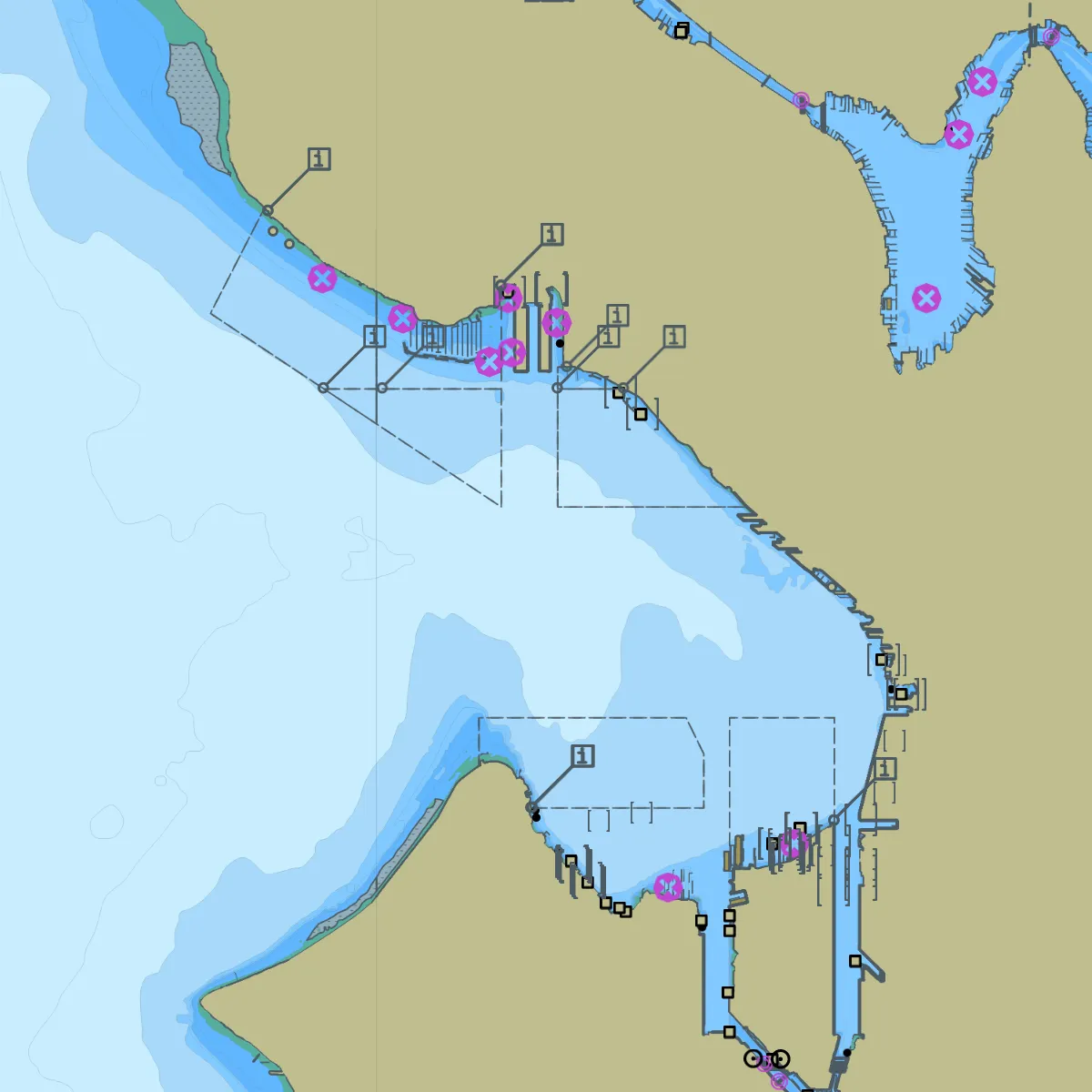

P12S-131 harbour infrastructure in SoundCharts
S-131
Harbour infrastructure
The viewer

Built for exploring the data.

SoundCharts is a desktop app for anyone who wants to see what S-100 data actually contains: hydrographers, developers, sailors and anyone curious.

Layers

Layers that know their place.

Products stack by the S-98 interoperability rules (display planes, priorities and inter-product rules), not by the order you loaded them. Add depths and currents to a chart and they stay readable.

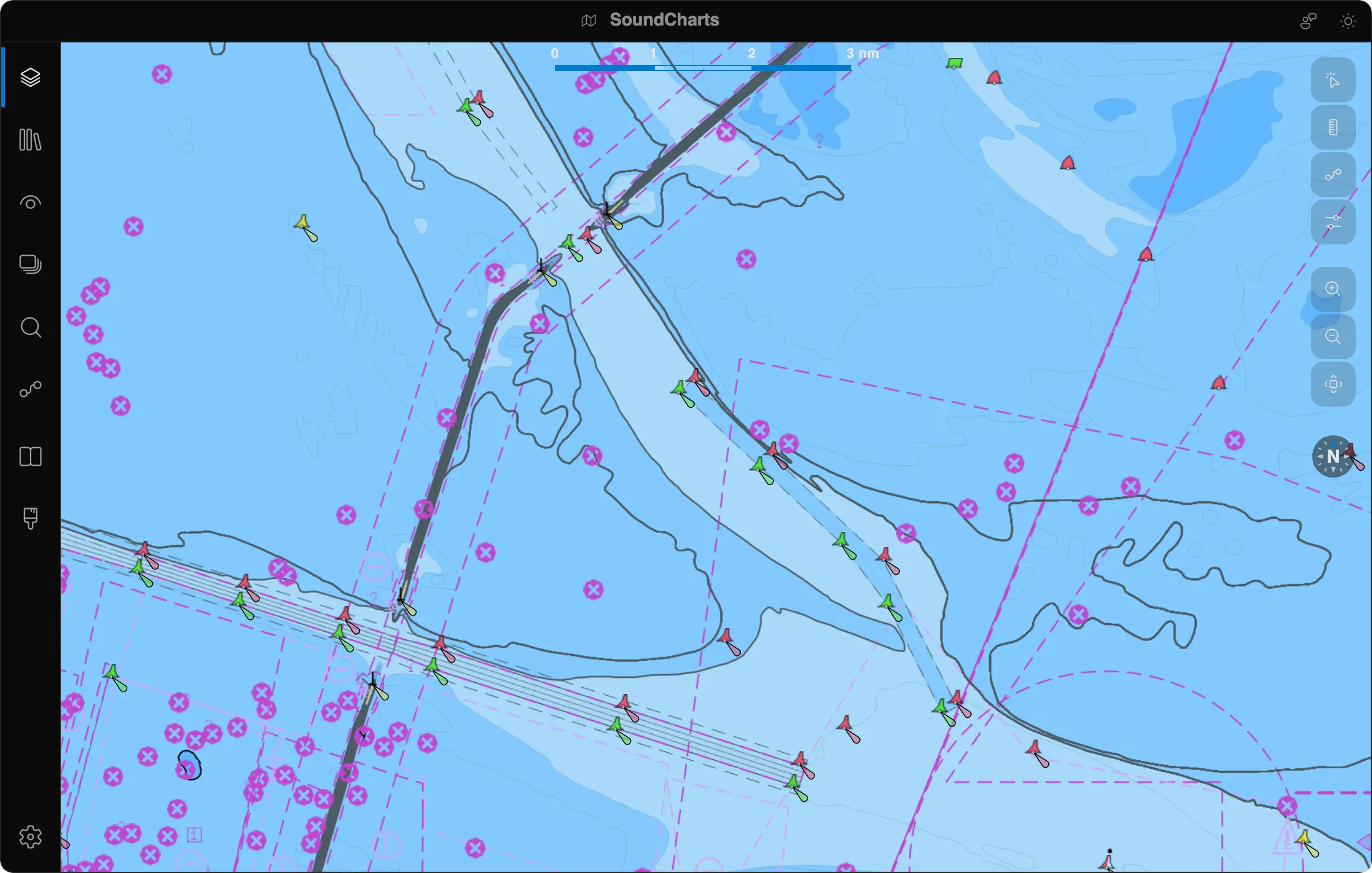

F1aNOAA chart of the Chesapeake Bay entrance

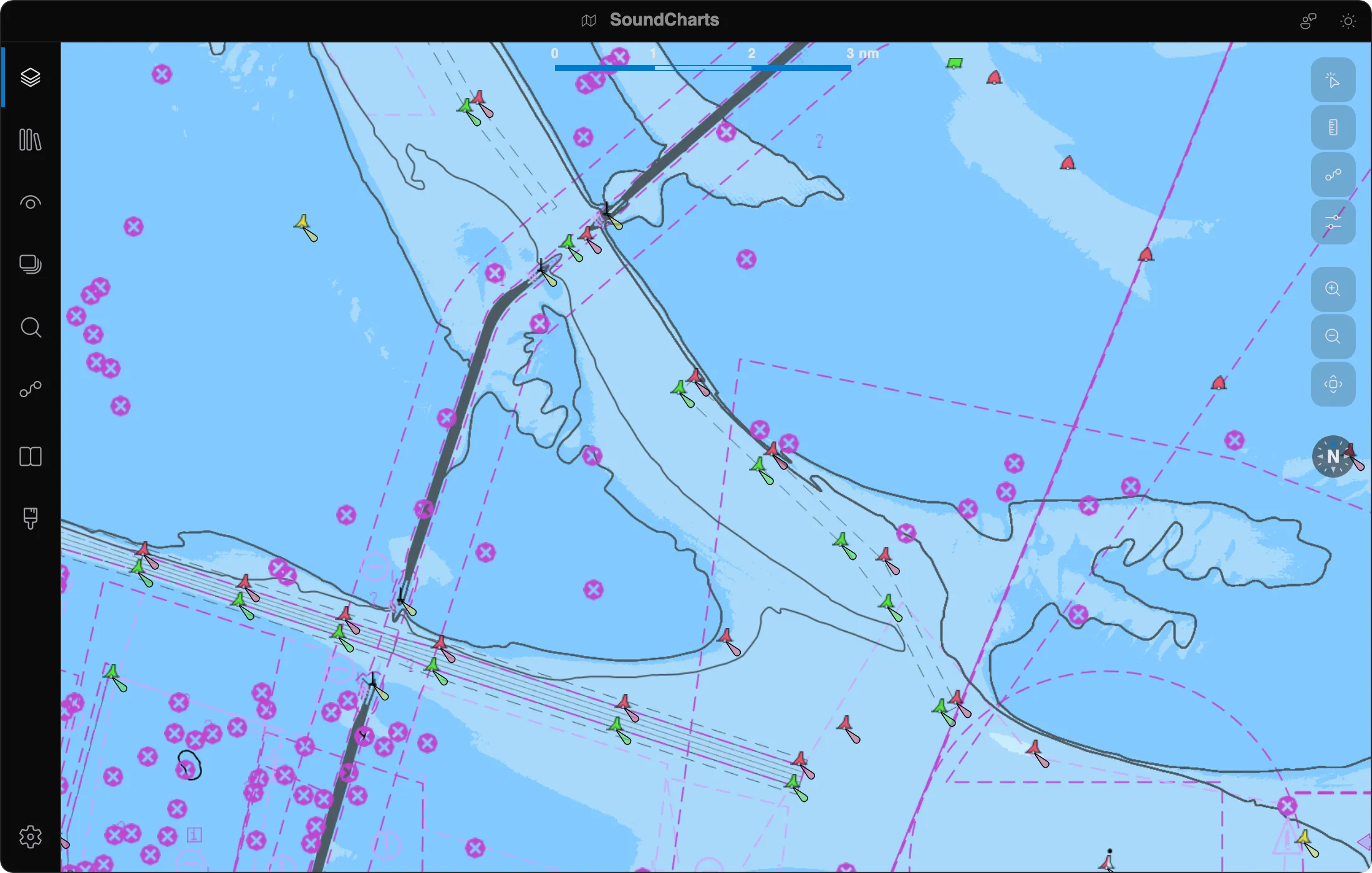

F1bThe same chart with NOAA S-102 bathymetry

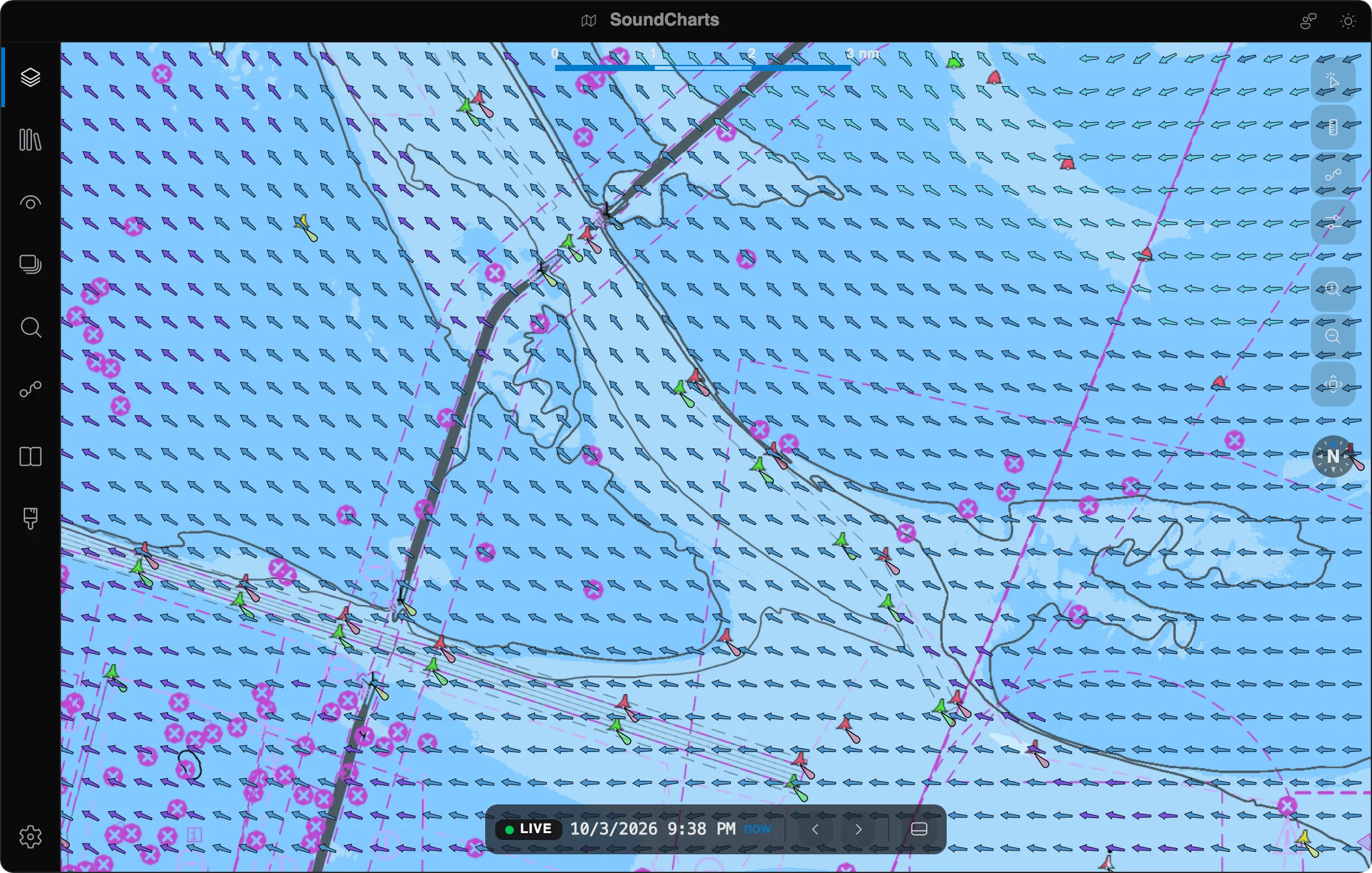

F1cThe same chart with S-102 bathymetry and S-111 surface currents
Time

Tides and currents on one timeline.

Time-varying products share one clock. Follow Live, pin a moment, or step through a forecast run, and every layer shows which sample it's drawing.

  • Move through time across forecast data
  • Zoom, presets and jump-to-data
  • Fetch updated forecasts with a single click

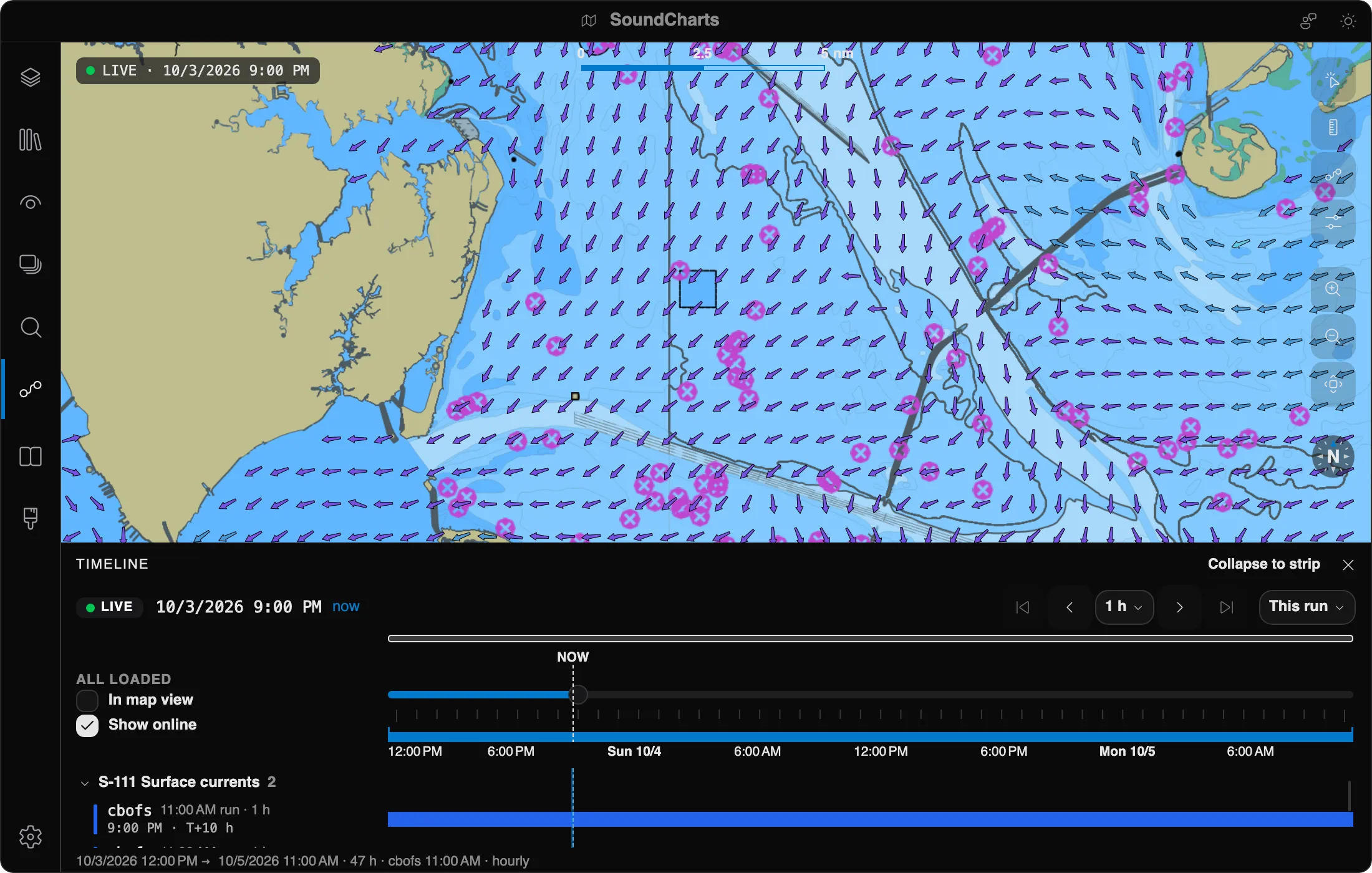

F2Timeline animating surface currents over Chesapeake Bay
Inspect

Click anything.

Object Information decodes every attribute into plain names and follows links between features. For tide and current stations it charts the time series right in the panel.

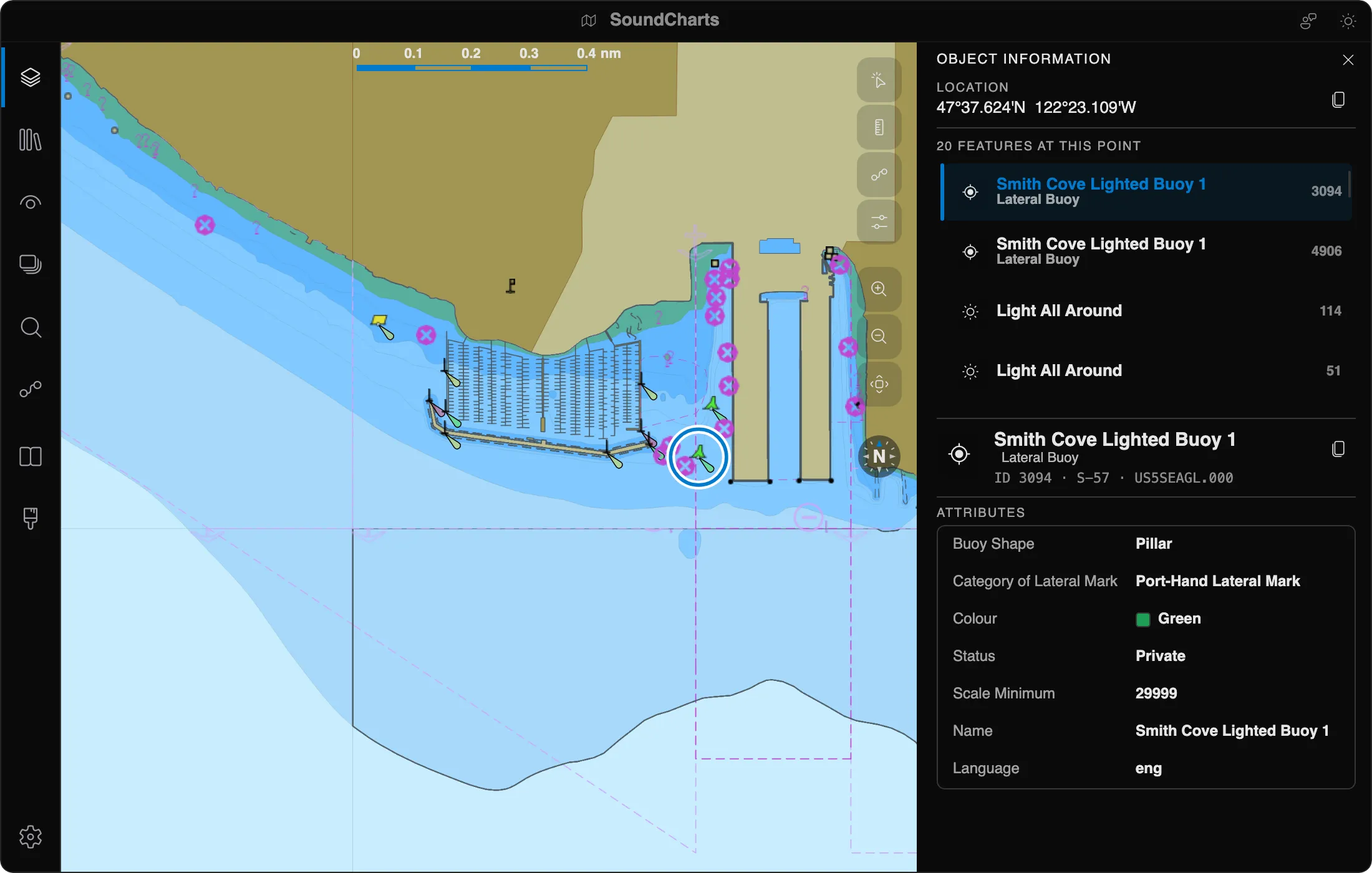

F3Object Information for a lit buoy
Passage planning

Plan it, check it, stay warned.

A route in SoundCharts is checked against everything you've loaded: charts, depths, tides, regulated areas and navigational warnings. Each point is judged at the time you'd get there, not just the time you leave.

Plan

Sketch a passage.

Drop waypoints on the chart and drag them around. Each leg can be great-circle or rhumb-line, distance and bearing update as you edit, and routes are stored in the S-421 route model. RTZ routes open too.

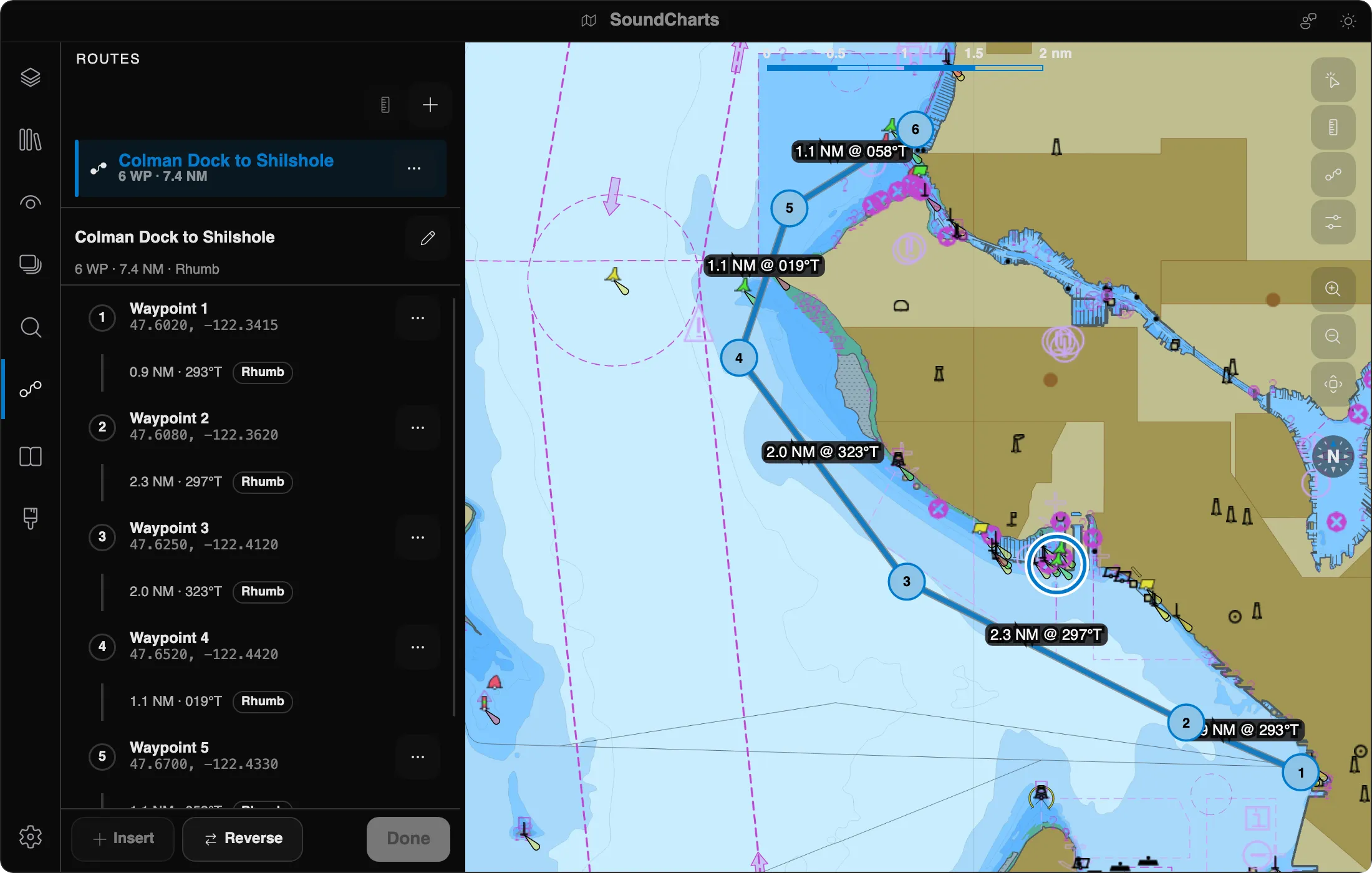

F4A route from Colman Dock round West Point to Shilshole Bay Marina, with the leg table open
Check

See what's on the way.

Check route sweeps a corridor along every leg and lists what it finds, worst first. Findings are marked on the map, and selecting one takes you to it.

  • Land, drying ground, the safety contour and charted dangers
  • Prohibited, caution, traffic and protected areas
  • Navigational warnings in force while you're there
  • Under-keel clearance along the route with S-104 water levels, and the departures that meet it
F10Check route for a deep-draft passage into Charleston Harbor: the verdict, the clearance profile with tide, and the map zoomed to a stretch below the UKC setting
Warnings

Warnings that know your route.

S-124 navigational warnings are drawn only while they're in force, stay marked NEW until you've read them, and can be set to on chart, off chart or information, as S-98 asks. While you check a route, the list narrows to the warnings on it and shows when you'll meet each one.

  • Warnings from files or live SECOM services
  • Each card links to its route finding, and back
F11The Navigational warnings panel showing the warnings on a route, with a warning card open
F12A warning card showing it crosses the route between legs 3 and 4

From warning to finding

A warning's card says where it meets the route. Select it to open that finding.

The same checks in CI

s100 route check runs the same checks on RTZ and S-421 routes, with the same findings, and fails the build when something needs review.

# exits 7 on a Must review finding
s100 route check route.rtz charts/ \
  --draft 7 --safety-contour 10
Route checks guide
Weather

The weather, on the chart you're using.

Forecast grids, tropical cyclone advisories and surface analyses draw over your charts, on the same timeline as tides and currents, and Check route reads them at your ETA. Weather data isn't S-100 data and isn't for navigation: use official forecasts and warnings to plan and make a passage.

Wind and waves

Wind and waves over the chart.

Open GRIB2 and NetCDF forecasts, such as NOAA's GFS and GFS-Wave, and see wave height, wind barbs and isobars. Step through the run on the Timeline. Marine warnings, buoy reports and your own wind instruments join them.

  • GRIB2 (including JPEG 2000), NetCDF-CF and CAP warnings
  • Isobars, a Beaufort wind fill and wave arrows in Display controls
  • NDBC buoys and own-ship wind from NMEA 0183
Weather guide
W1Hurricane Erin off Cape Hatteras: NOAA GFS-Wave wave height and GFS wind barbs and isobars over the NOAA charts
Ocean

Sea temperature and currents.

Sea surface temperature fills in a band for each degree, so fronts such as the edge of the Gulf Stream show as closely spaced bands, with isotherms every 2 °C if you want them. Ocean currents draw in S-111's speed bands and colours, so a model current reads the same as an S-111 dataset.

  • Daily MUR, OISST and Geo-polar Blended analyses from NOAA ERDDAP
  • Currents from satellite altimetry and US coastal HF radar
  • HYCOM and Copernicus Marine files open too
Show a forecast
W2The Gulf Stream in the Florida Straits: NASA JPL MUR sea surface temperature with isotherms and NOAA AOML current arrows over the NOAA charts
Hazards

Ice, fog, rain and thunderstorms.

Freezing spray is worked out from the wind, air temperature and sea temperature with the icing predictor NOAA's Ocean Prediction Center uses, and drawn in four classes from light to extreme. Restricted visibility uses the bands of a marine forecast, and nothing is drawn where it's good, so the chart stays clear.

  • Freezing spray, with dashed air temperature isotherms
  • Very poor, poor and moderate visibility
  • Precipitation rate, thunderstorm risk from CAPE, and cloud cover
Show a forecast
W3Freezing spray round Kodiak Island and Shelikof Strait in an Arctic outbreak, with air temperature isotherms and isobars from NOAA GFS over the NOAA charts
Tropical cyclones

The storm, where it will be.

Add the storms NHC is issuing advisories for from the Library, or open an advisory's files. SoundCharts draws the cone, forecast track, wind radii and past track, and the storm at the view time, estimated between forecast points, so stepping through the Timeline moves it along its track.

  • 34, 50 and 64 kt wind radii
  • Marked stale once a newer advisory is likely, and final when NHC stops issuing
  • Atlantic and East and Central Pacific storms
Show tropical cyclones
W4Hurricane Erin passing north of Puerto Rico and the Virgin Islands: the NHC cone, forecast track, wind radii and the storm at the view time, with the wind radii over the NOAA charts
Surface analysis

Fronts and pressure centres.

The Weather Prediction Center's coded surface analysis draws like a printed weather map: cold, warm, occluded and stationary fronts, troughs, and highs and lows with their central pressure. The Library fetches each new analysis as WPC issues it, every 3 hours, and an analysis fades once it's 6 hours old.

  • The analysis and WPC's forecast fronts, each at its own time
  • North America and the waters around it, WPC's area
Show a surface analysis
W5WPC surface analysis off the Carolinas: a low and its cold front with GFS isobars over the NOAA charts
On a route

Weather at your ETA.

Set a wind or wave limit and Check route reads the loaded forecast at the time you'd reach each point. It lists the stretches above a limit, with their time window and highest value, and the stretches the forecast doesn't reach. With an NHC advisory loaded, it also tests the route against the storm where it will be at each ETA. The findings are for planning, not navigation.

  • 10 m wind and significant wave height
  • The storm's 34, 50 and 64 kt wind radii, its cone and your closest approach, with Must review inside the 50 kt radius
  • The departures that keep the route within your limits and out of the storm
  • The same check in s100 route check
Weather along the route
W6Check route from Charleston to the Chesapeake Bay entrance as Hurricane Erin passed offshore: the stretch off Cape Hatteras inside Erin's 34 kt wind radius, and wind and wave findings above the limits
W8Sea fog off eastern Maine: NOAA GFS restricted visibility over the NOAA charts of Penobscot Bay and Mount Desert

Fog

Visibility under 5 nautical miles in three greys, from moderate to fog.

W9Rain and thunderstorm risk over south Florida from NOAA GFS, over the NOAA charts

Rain and thunderstorms

Precipitation in rain radar colours, thunderstorm risk where CAPE is high, and a light cloud veil.

W7The Library listing its weather sources: GFS, sea surface temperature from ERDDAP, NHC's active storms and WPC's surface analysis

Sources in the Library

GFS runs, ERDDAP analyses, NHC storms and WPC analyses for the map view, refreshed as new ones are issued and tagged Stale when they're old.

Library

Find data, not files.

The Library indexes local folders, collection manifests and online catalogues, so everything you can load is in one place. Whatever you load is checked against its product's rules and drawn with the display controls you'd expect from an ECDIS.

Browse

See coverage before you download.

Online catalogues include NOAA's charts, high-resolution bathymetry, and water-level and current forecasts. You can browse coverage on the map before you download anything, and keep it up to date afterwards.

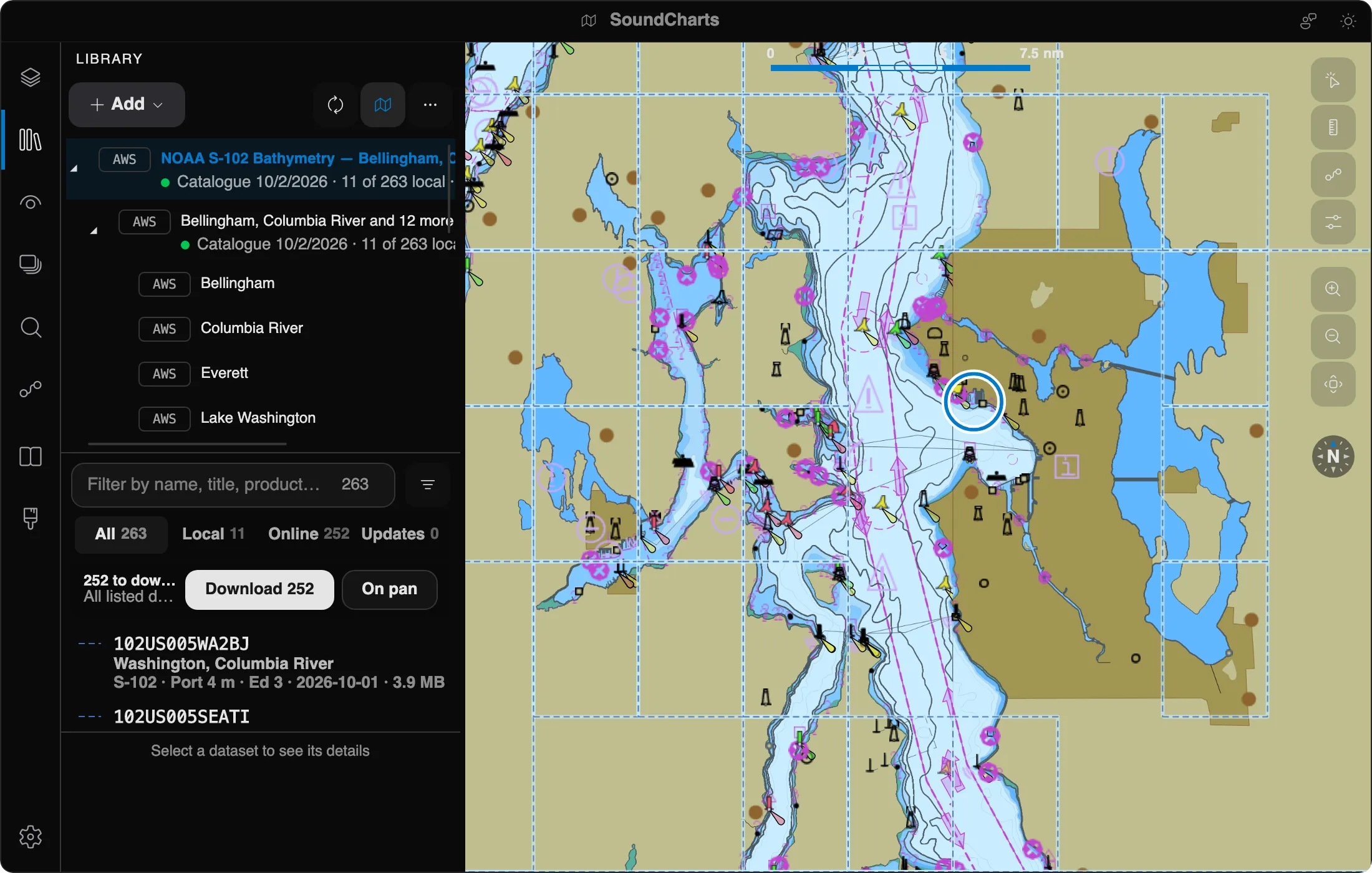

F5The Library panel browsing NOAA S-102 coverage areas
Catalogues

Charts from around the world.

Add online source lists the sources SoundCharts knows, grouped by region: NOAA's charts, depths, water levels and currents, USACE inland charts, Canada's navigational warnings over SECOM, and inland charts for Europe's rivers from the Danube to the Rhine.

  • Browse the SECOM registry for more services
  • Paste any catalogue's URL and it's recognised
F13The Add online source directory, with catalogues grouped by region

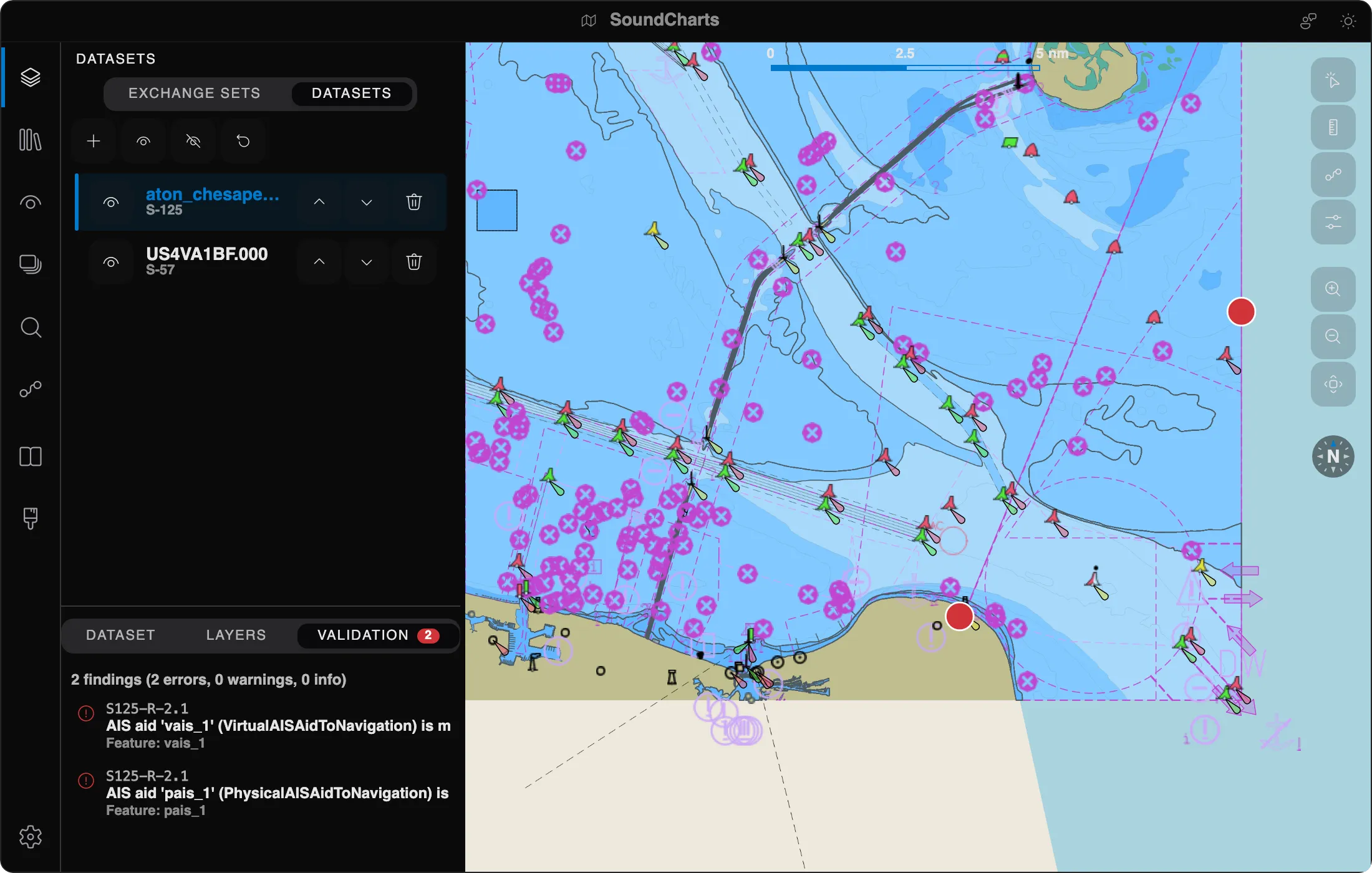

F8Validation findings with map markers

Validation built in

Normative rule packs for every S-100 product. Click a finding to jump to it on the map.

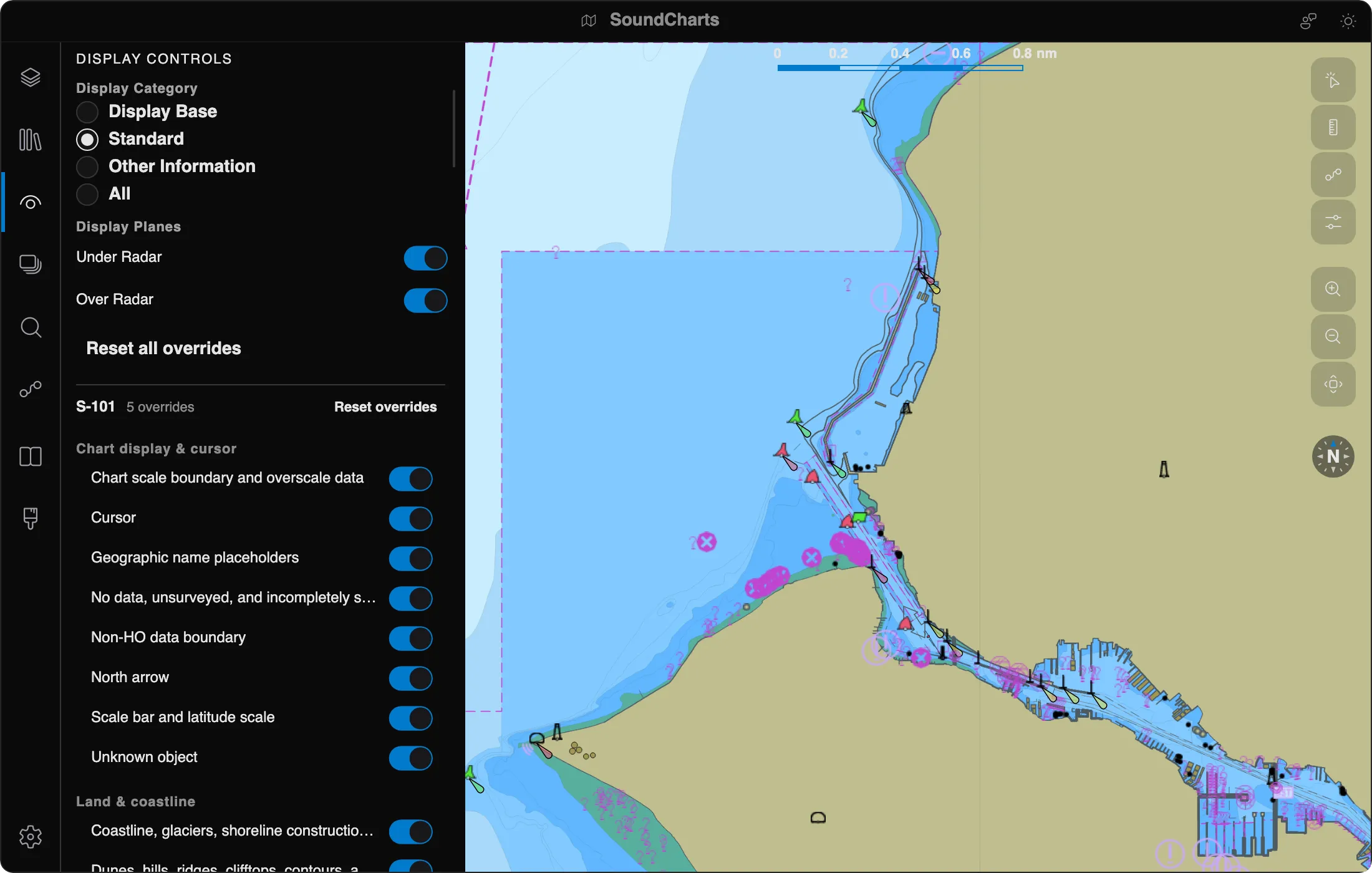

F9ECDIS display controls

ECDIS-style controls

Display categories, viewing groups, safety contour, four-shade depths and simplified symbols.

Palettes

Day, Dusk and Night.

All three IHO colour palettes, with the app's chrome following along, from a bright afternoon to a dark wheelhouse.

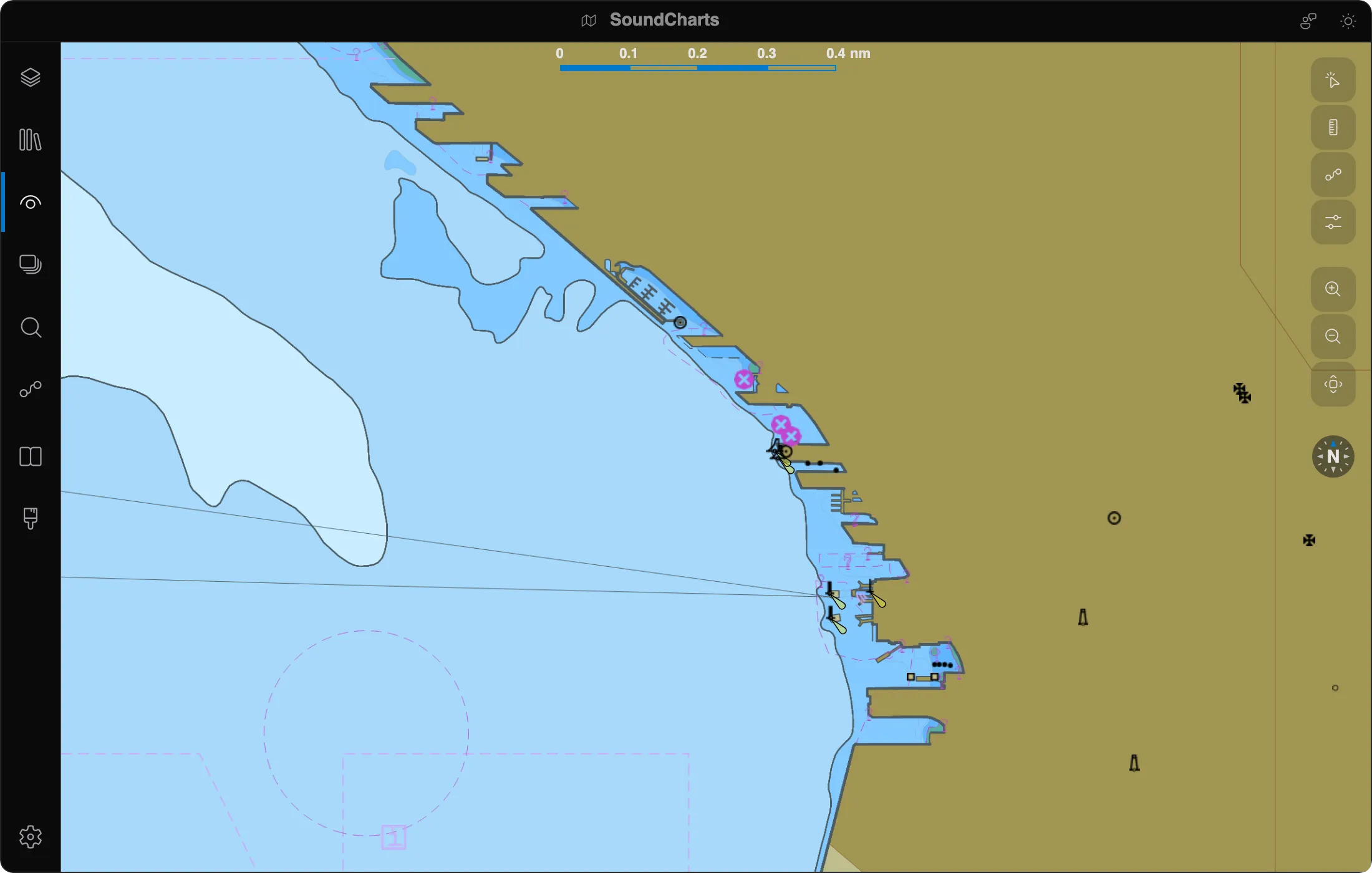

F7-dayThe same harbour view in the Day palette
Day

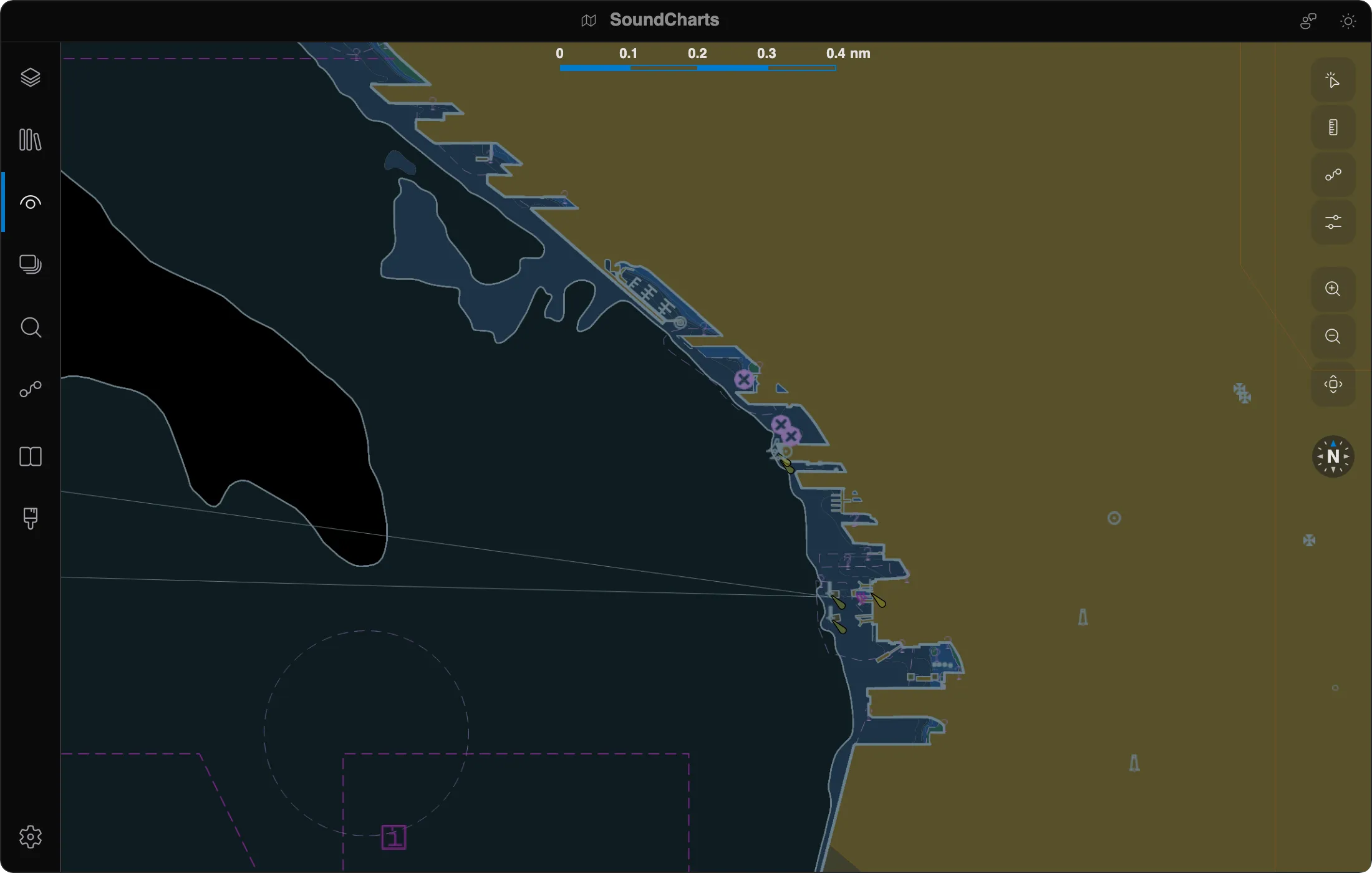

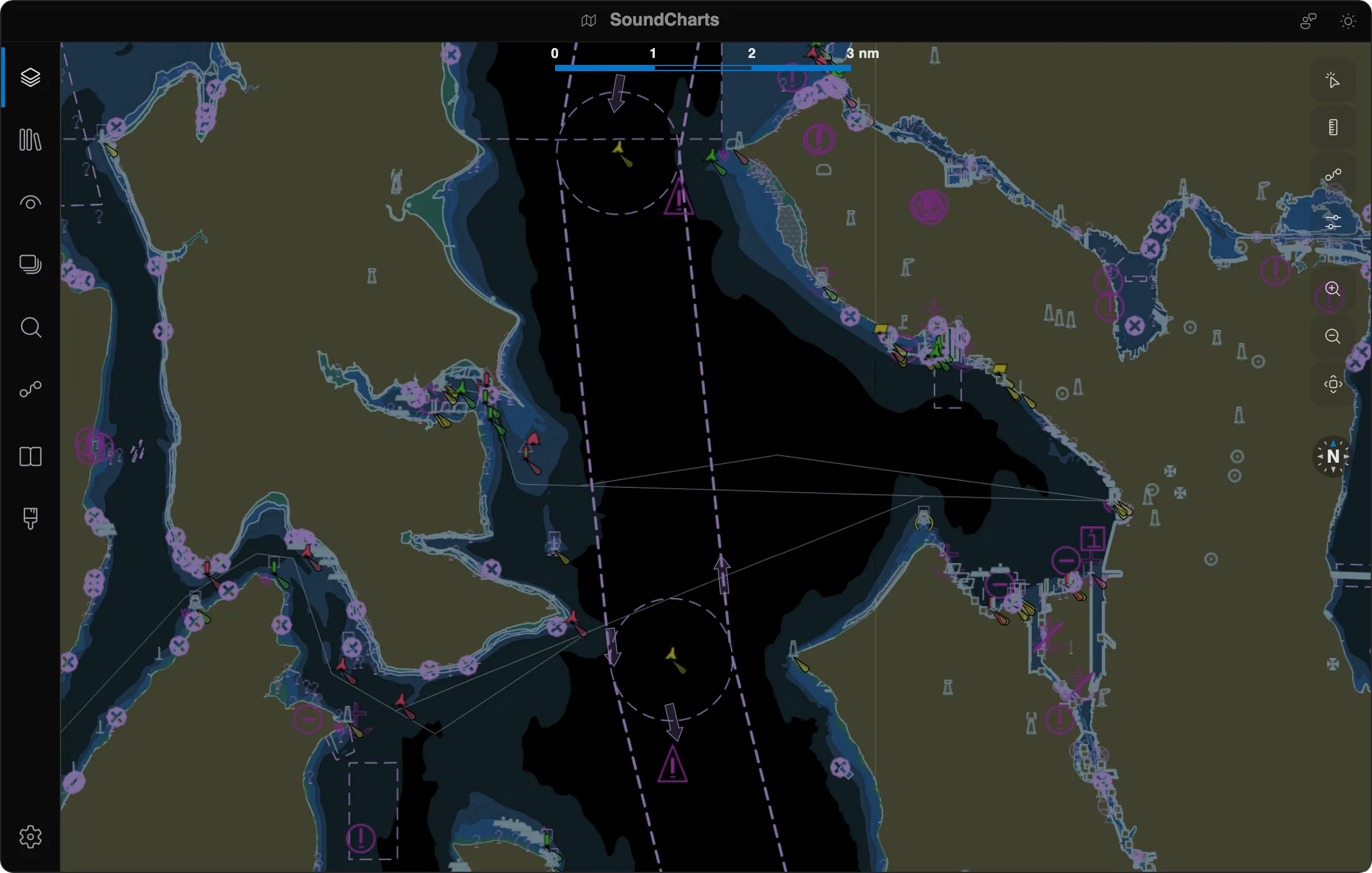

F7-duskThe same harbour view in the Dusk palette
Dusk

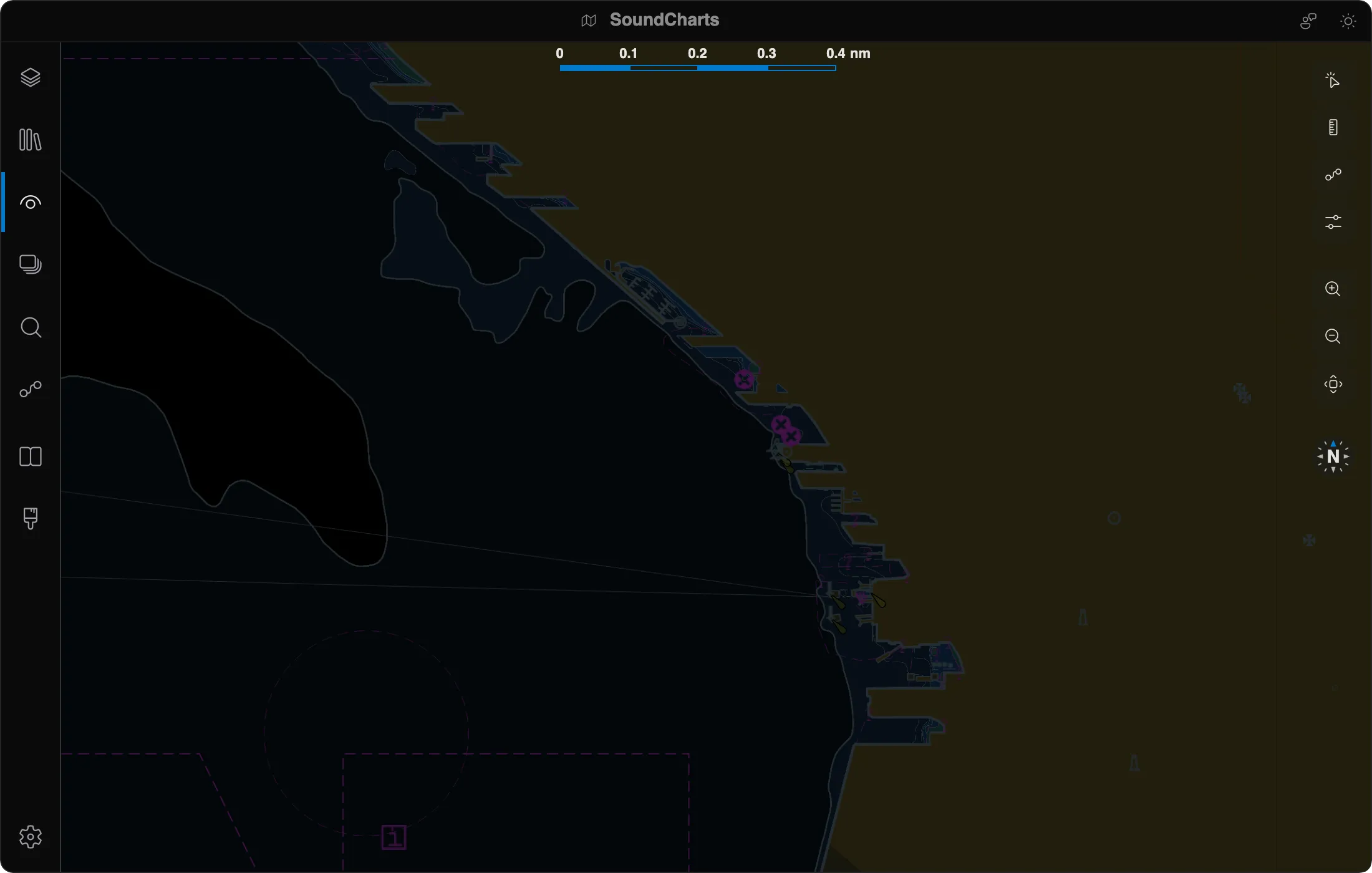

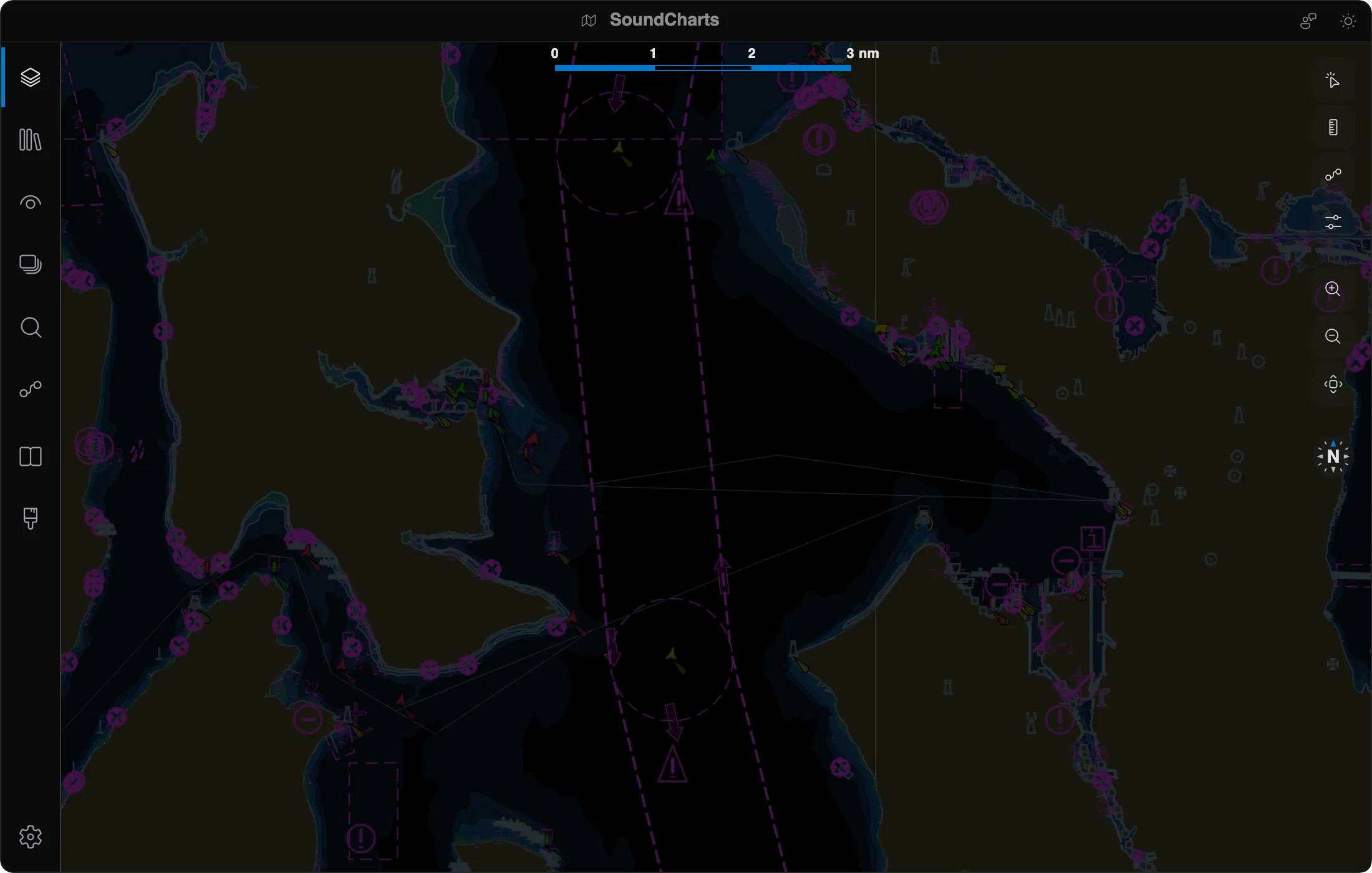

F7-nightThe same harbour view in the Night palette
Night
For developers

Built on an SDK you can use.

Everything SoundCharts does is in EncDotNet.S100, a managed .NET library for reading, portraying, rendering and validating S-100 data. It has no native dependencies and no commercial S-52 assets.

Library

Three lines to a PNG.

Open any supported dataset, and the bundled feature and portrayal catalogues take care of the rest.

using var ds = S100Dataset.Open("chart.000");
using var r  = new PngS100DatasetRenderer();
byte[] png = await r.RenderAsync(ds);
Command line

Render and serve from the shell.

The self-contained s100 tool renders, inspects and validates data, checks routes and predicts tides. It serves a folder of charts as map tiles for web maps and GIS, with WMTS and WMS. It needs no .NET install, and there's a Docker image too.

# a folder of charts, as tiles
docker run -p 8200:8200 \
  -v ./charts:/data:ro \
  ghcr.io/philliphoff/s100 \
  tiles serve /data --host 0.0.0.0
MCP

Let agents read the chart.

An optional MCP server lets AI agents query features, sample depths and currents, plan routes and drive the viewer. s100 mcp serve runs the same tools without the app, locally or over HTTP.

D2 · clip

Supported standards

S-101Electronic Navigational Charts
S-102Bathymetric Surfaces
S-104Water Level Information
S-111Surface Currents
S-122Marine Protected Areas
S-124Navigational Warnings
S-125Marine Aids to Navigation
S-127Marine Resources & Services
S-128Catalogue of Nautical Products
S-129Under Keel Clearance
S-131Harbour Infrastructure
S-201IALA AtoN Information
S-411Sea Ice Information
S-412Marine Weather Warnings (draft)
S-421Route Plans
S-401Inland ENC (IEHG)
S-57Legacy ENC, via S-101

Each standard comes with a reader and portrayal, and validation rule packs where the spec defines them.Full details →

Open source, made in the open.

SoundCharts and EncDotNet.S100 are MIT licensed. Issues, ideas and pull requests are all welcome. The project was named for Puget Sound and is built for waters everywhere.

Review · ■ captured ■ stand-in■ to capture
